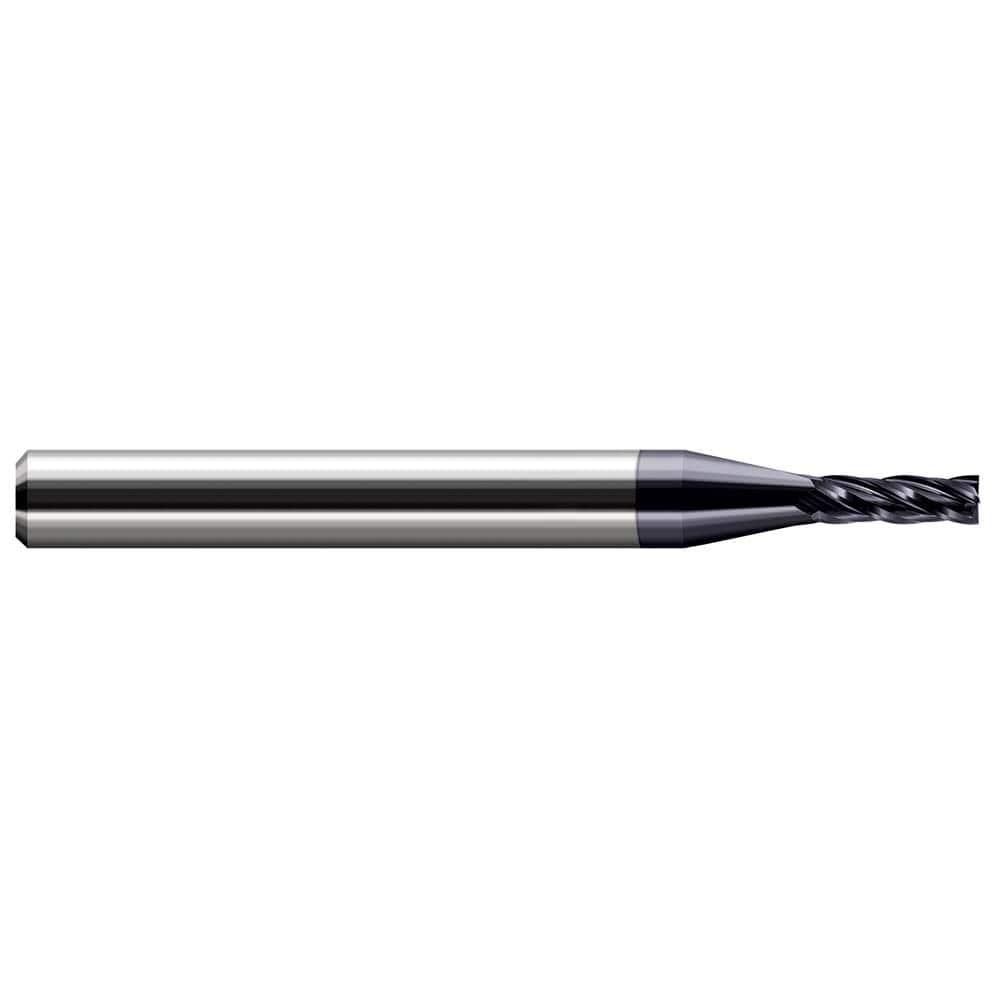

Harvey Tool - Square End Mills; Mill Diameter (mm): 0.30 ; Mill Diameter (Decimal Inch): 0.0120 ; Length of Cut (Decimal Inch): 0.0360 ; Material: Solid Carbide ; Finish/Coating: AlTiN ; Shank Diameter (Inch): 1/8
Item #: 96175666
Brand: Harvey Tool
Model #: 836312-C3
Product Specifications
Square End Mills; Mill Diameter (mm): 0.30 ; Mill Diameter (Decimal Inch): 0.0120 ; Length of Cut (Decimal Inch): 0.0360 ; Material: Solid Carbide ; Finish/Coating: AlTiN ; Shank Diameter (Inch): 1/8
| Mill Diameter (mm) | 0.30 |
| Mill Diameter (Decimal Inch) | 0.0120 |
| Length of Cut (Decimal Inch) | 0.0360 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.50000 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Series/List | Miniature End Mills - Square - Stub & Standard |
