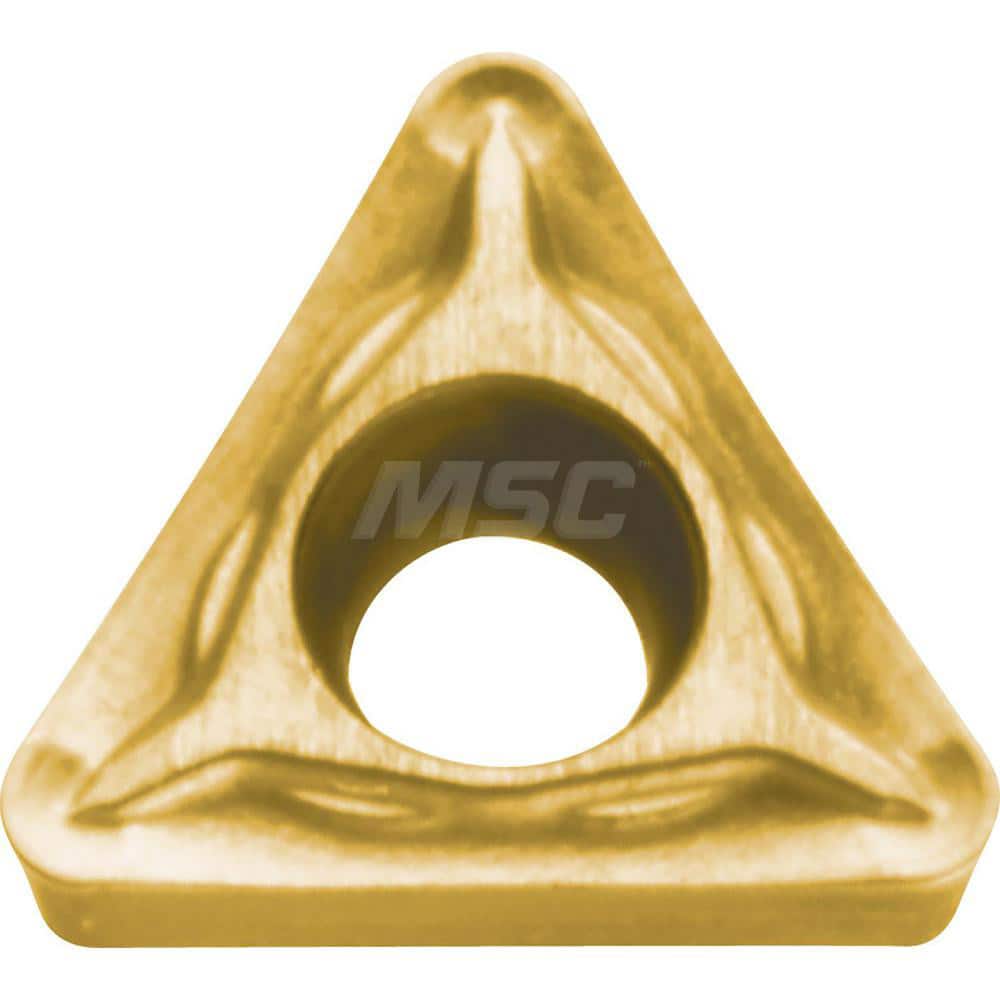

Indexable Drill Insert: TCMTHP CA6535, Carbide TiCN, Al2O3 & TiN Finish, 60 °
Item #: 96160502
Brand: Kyocera
Model #: 8858964
Product Specifications
| Insert Style | TCMT |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA6535 |
| Thickness (mm) | 2.38 |
| Inscribed Circle (mm) | 5.56 |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.80 |
| Chipbreaker | HP |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
| Relief Angle | 7 |
| Primary Workpiece Material | S; M |
| Iso Code | TCMT18152HP |
| Manufacturers Catalog Number | TCMT18152HPCA6535 |
| Drill Style | SD |
| Insert Size | 18152 |
| Length (Mm) | 5.56 |
| Included Angle Degree | 60 |
| Coating/Finish | TiCn; TiN; Al2O3 |
