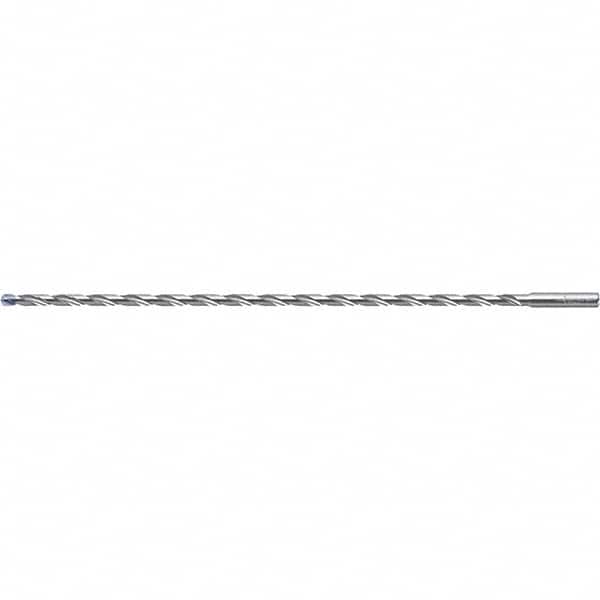

Walter-Titex - 10.2mm 130° 2-Flute Solid Carbide Extra Length Drill Bit
Item #: 47283288
Brand: Walter-Titex
Model #: 6280493
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
TiNAl is extremely wear resistant coating when used at high temperatures and speeds in a wide range of high strength applications. It is commonly used on steel, cast iron and non-ferrous metal. Tinal is a proprietary coating exclusive to Walter Titex.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 10.20 |
| Drill Bit Size (Decimal Inch) | 0.4016 |
| Drill Point Angle | 130 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiNAl |
| Overall Length (Decimal Inch) | 20.7870 |
| Overall Length (mm) | 528.00 |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Shank Diameter (mm) | 12.00 |
| Flute Length (mm) | 477.00 |
| Flute Length (Decimal Inch) | 18.7800 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 40xD |
| Number of Flutes | 2 |
| Maximum Drilling Depth (mm) | 460.00 |
| Maximum Drilling Depth (Decimal Inch) | 18.1100 |
| Drill Point Length (mm) | 2.38 |
| Drill Point Length (Decimal Inch) | 0.0940 |
| Series/List | A7495TTP |
