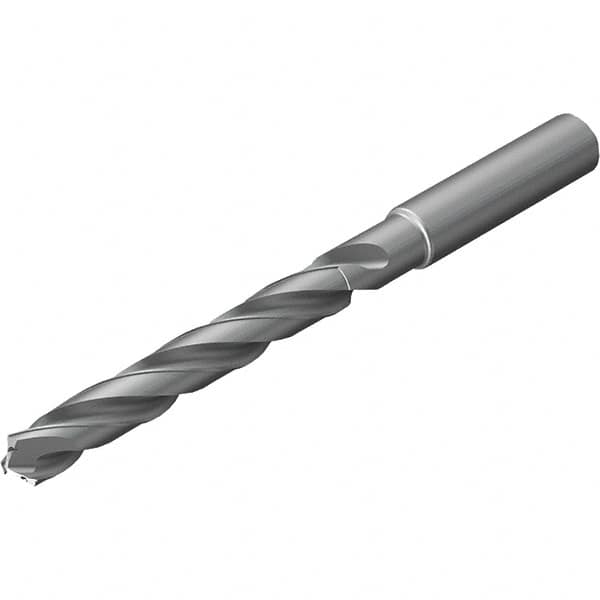

Jobber Length Drill Bit: 0.1969″ Dia, 135 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 95998076
Brand: Sandvik Coromant
Model #: 7593999
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Drill Bit Size (mm) | 5.00 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Overall Length (mm) | 85.00 |
| Flute Length (mm) | 37.50 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (mm) | 30.00 |
| Drill Point Length (mm) | 1.03 |
| Drill Bit Grade | N1BU |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
