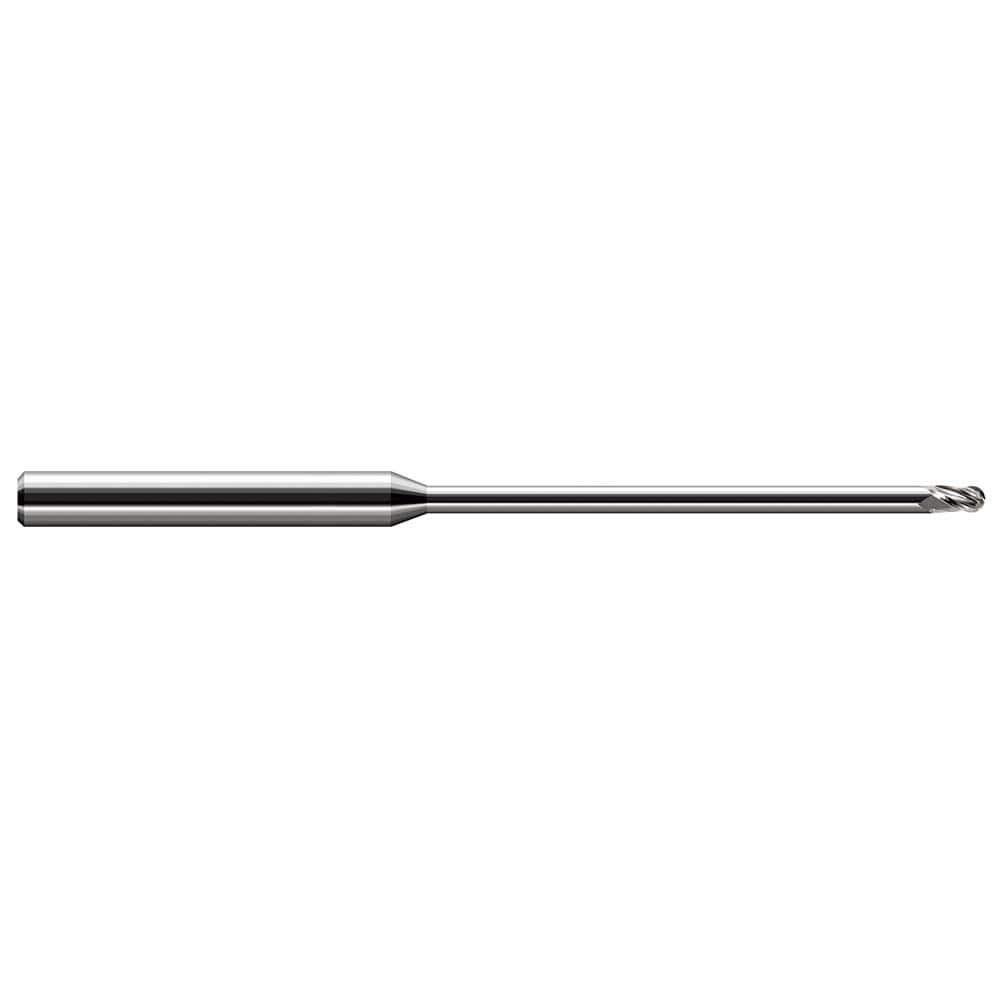

Harvey Tool - Ball End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; Number of Flutes: 3 ; Length of Cut (Inch): 3/8 ; Length of Cut (Decimal Inch): 0.3750 ; Material: Solid Carbide
Item #: 95996435
Brand: Harvey Tool
Model #: 59516
Product Specifications
Ball End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; Number of Flutes: 3 ; Length of Cut (Inch): 3/8 ; Length of Cut (Decimal Inch): 0.3750 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Material | Solid Carbide |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.00000 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Helix | No |
| Reach Length (Inch) | 5 |
| Reach Length (Decimal Inch) | 5.0000 |
| Series/List | Miniature End Mills - Ball - Long Reach, Stub Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
