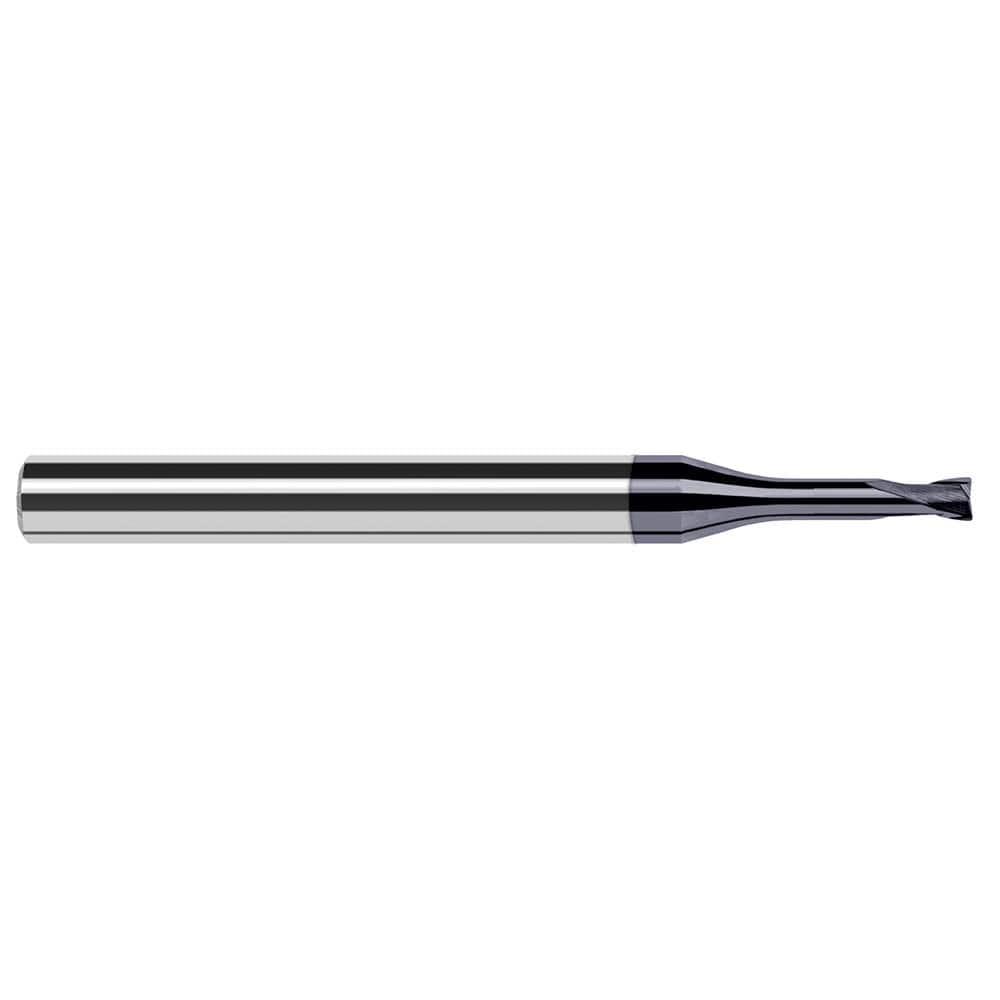

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 4
Item #: 95941647
Brand: Harvey Tool
Model #: 938731-C6
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 4
| Mill Diameter (mm) | 0.80 |
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0050 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Length of Cut (Decimal Inch) | 0.0250 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 20 |
| Variable Helix | No |
| Reach Length (Inch) | 3/32 |
| Reach Length (Decimal Inch) | 0.0930 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | End Mills for Hardened Steels - Finishers - Corner Radius |
