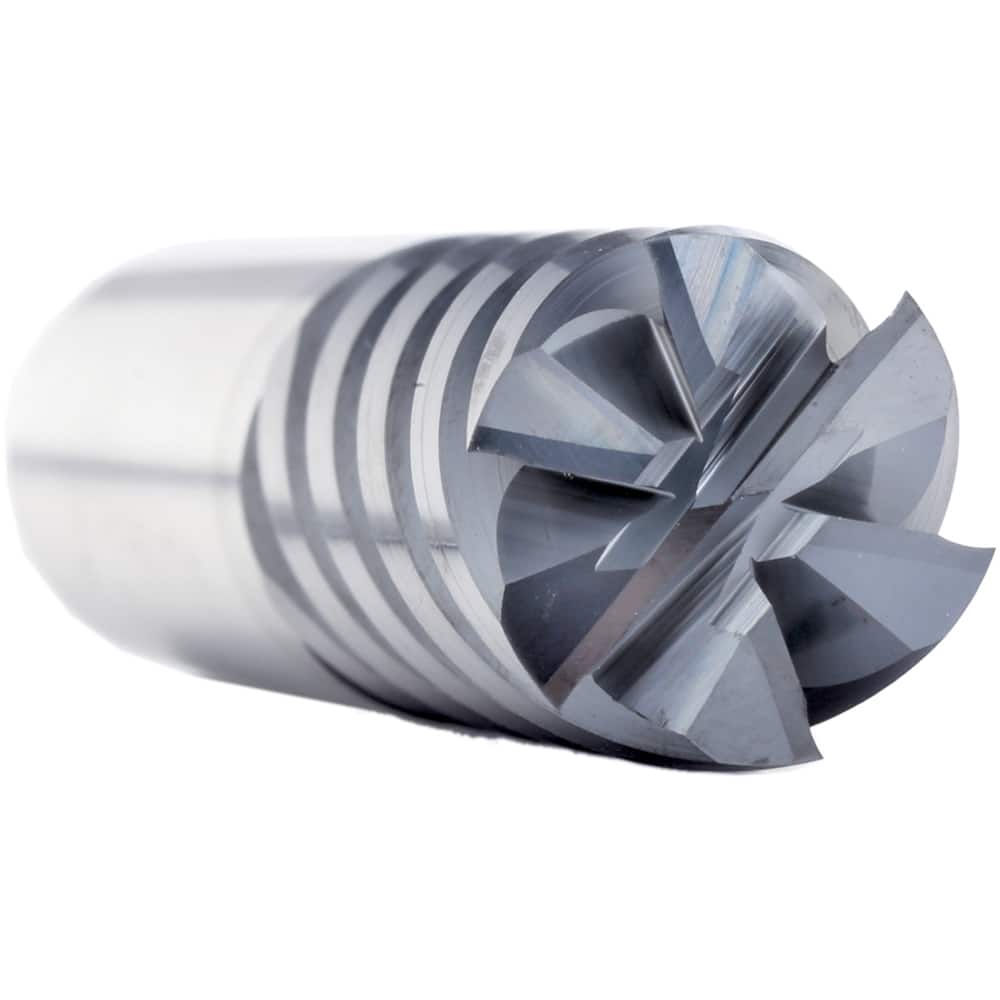

Corner Radius End Mill: 7/16″ Dia, 1″ LOC, 0.03″ Radius, 6 Flutes, Solid Carbide 2-3/4″ OAL, 7/16″ Shank Dia, 45 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series SM6F
Item #: 95828539
Brand: Supermill
Model #: SM6F437-030
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4375 |
| Mill Diameter (Inch) | 7/16 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 7/16 |
| Overall Length (Inch) | 2-3/4 |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SM6F |
| Single Or Double End | Single |
| Manufacturers Catalog Number | SM6F |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
