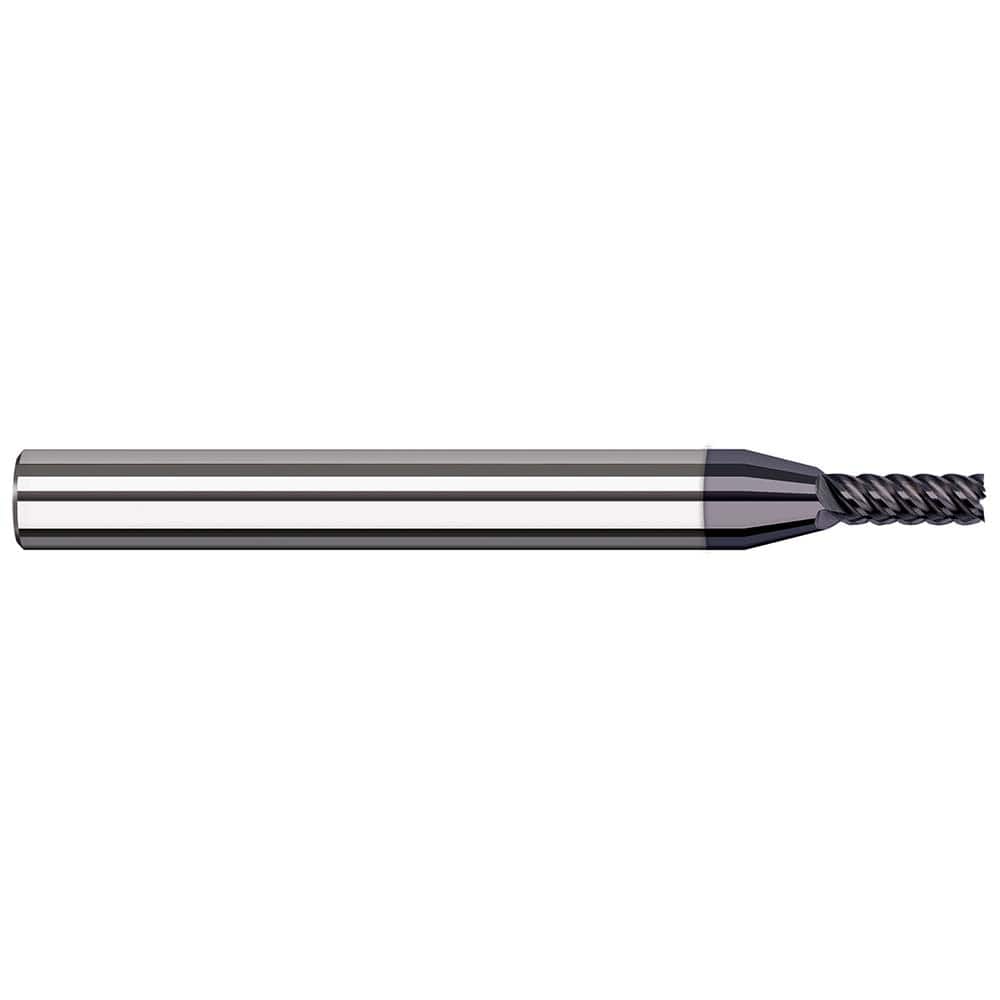

Square End Mill: 5/16'' Dia, 1'' LOC, 5/16'' Shank Dia, 2-1/2'' OAL, 7 Flutes, Solid Carbide Single End, AlTiN Finish, 41 ° Variable Helix, RH Cut, RH Flute
Item #: 95824900
Brand: Harvey Tool
Model #: 57920-C6
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 7 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 41 |
| Variable Helix | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
