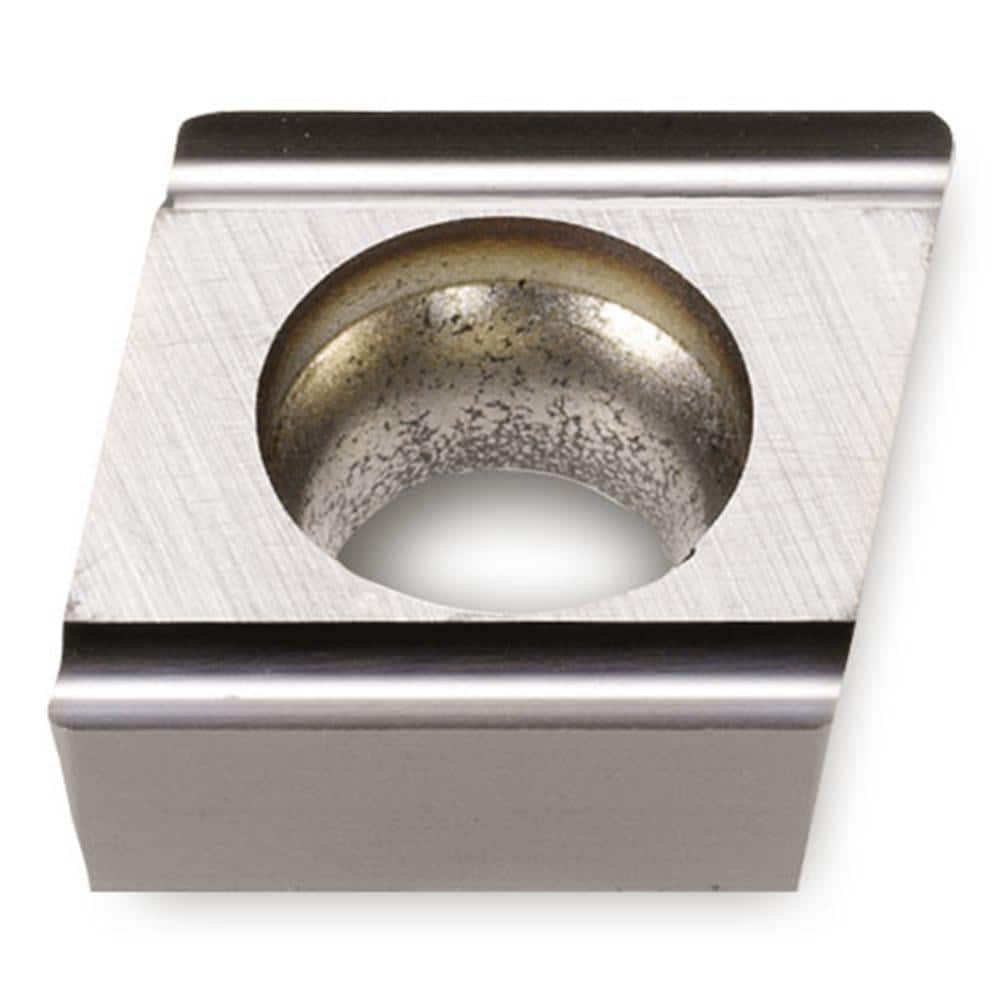

Turning Insert: CCET32.52L-GF TT9020, Solid Carbide TiCN Finish, Left Hand, 0.3820″ Long, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Diamond, Series CCET
Item #: 95611596
Brand: Ingersoll Cutting Tools
Model #: 5519576
Product Specifications
| Insert Style | CCET |
| Insert Shape Code | C |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9020 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCET |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3820 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | CCET32.52LGFTT9020 |
| Iso Code | CCET09T308L-GF TT9020 |
| Chip Breaker | GF |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiCN |
