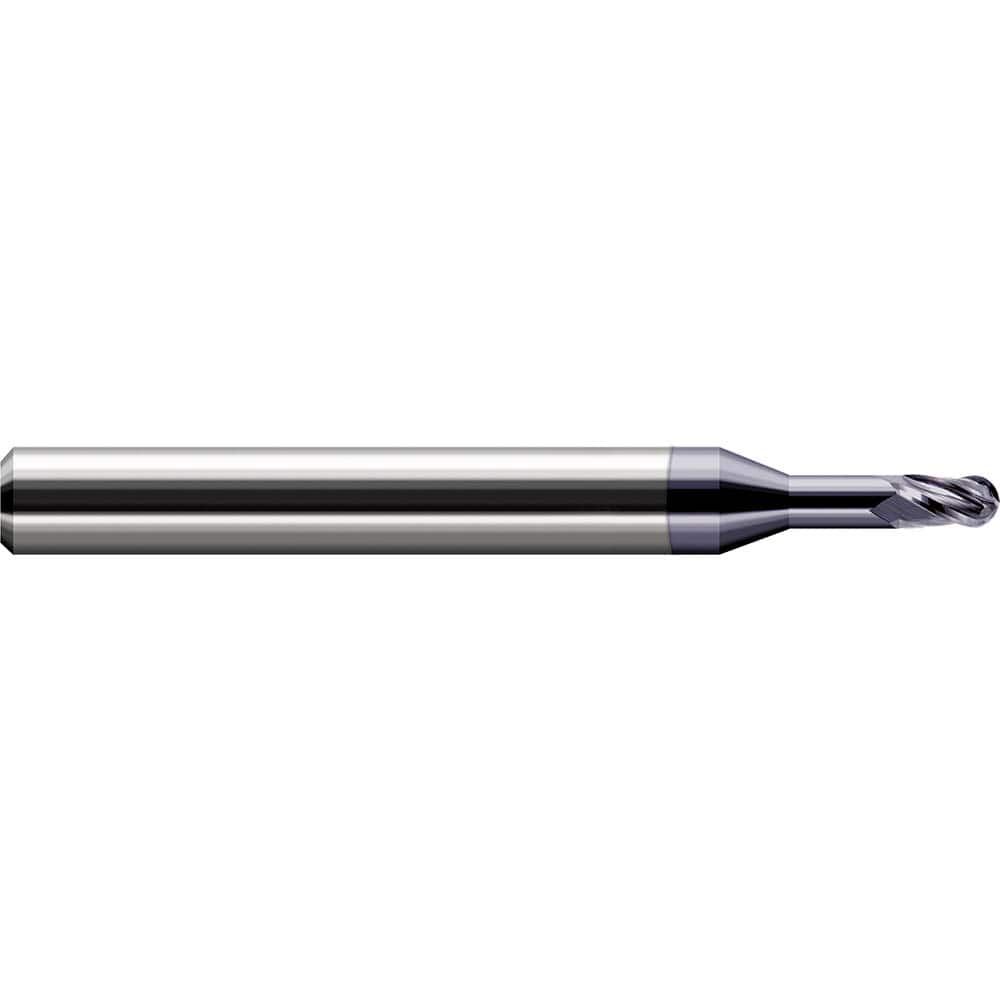

Harvey Tool - Ball End Mills; Mill Diameter (mm): 0.50 ; Mill Diameter (Decimal Inch): 0.0200 ; Number of Flutes: 3 ; Length of Cut (Decimal Inch): 0.0300 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2
Item #: 95576567
Brand: Harvey Tool
Model #: 844420-C3
Product Specifications
Ball End Mills; Mill Diameter (mm): 0.50 ; Mill Diameter (Decimal Inch): 0.0200 ; Number of Flutes: 3 ; Length of Cut (Decimal Inch): 0.0300 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2
| Mill Diameter (mm) | 0.50 |
| Mill Diameter (Decimal Inch) | 0.0200 |
| Number of Flutes | 3 |
| Length of Cut (Decimal Inch) | 0.0300 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | AlTiN |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Helix | No |
| Reach Length (Decimal Inch) | 0.0800 |
| Series/List | Miniature End Mills - Ball - Long Reach, Stub Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
