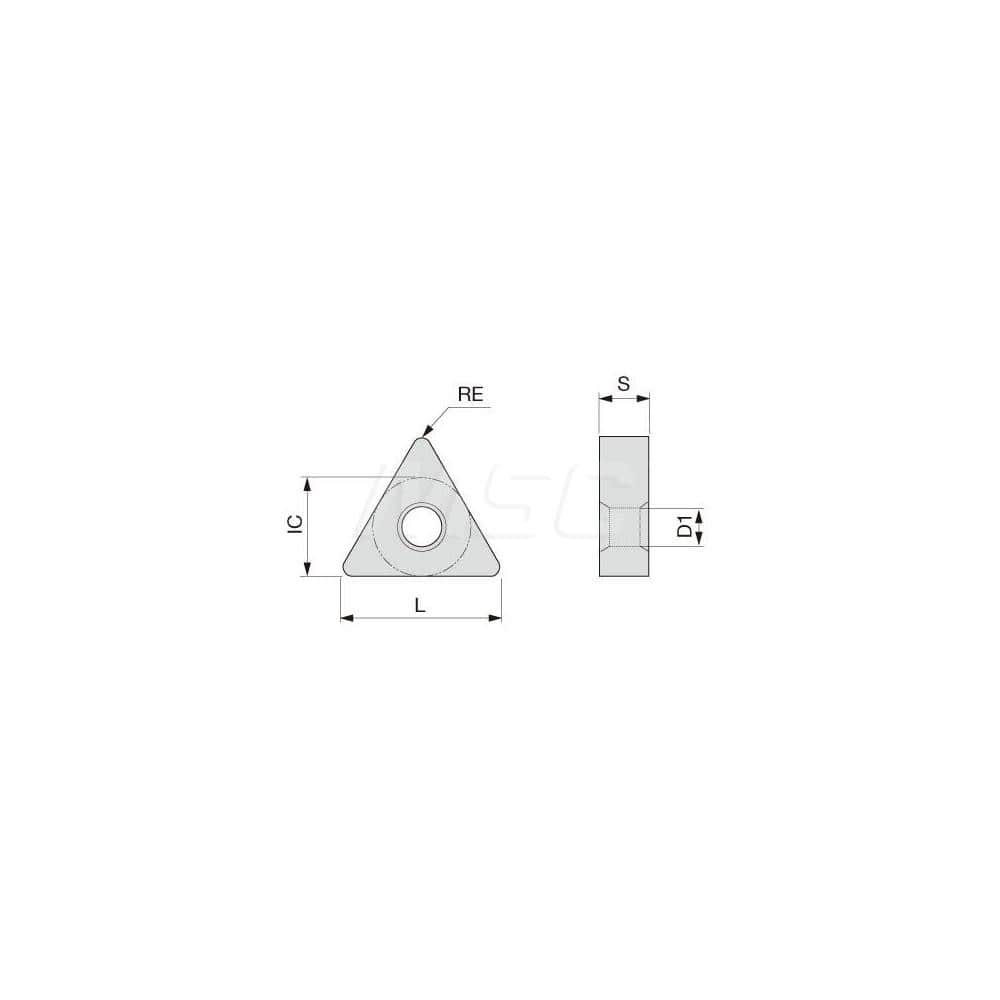

Turning Insert: TNGG331F-01 SH725, Solid Carbide TiAlN Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TNGG
Item #: 95551727
Brand: Tungaloy
Model #: 6737224
Product Specifications
| Insert Style | TNGG |
| Insert Size Code | 331 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH725 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNGG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | TNGG331F01SH725 |
| Iso Code | TNGG160404F-01 SH725 |
| Chip Breaker | 01 |
| Coating/Finish | TiAlN |
