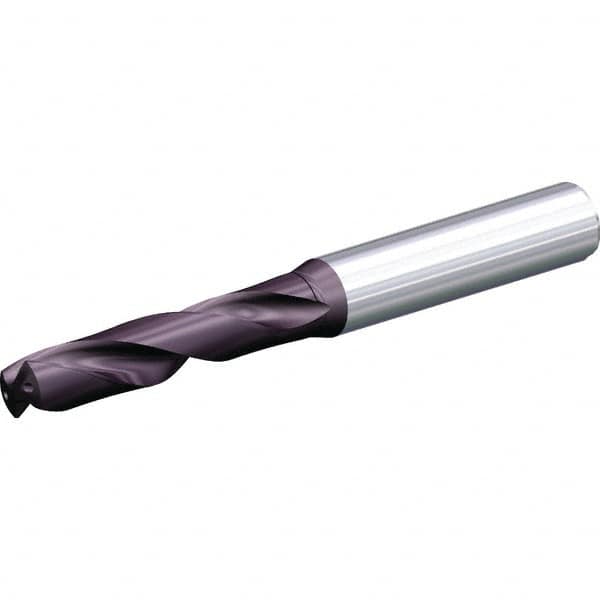

Screw Machine Length Drill Bit: 0.25″ Dia, 140 °, Solid Carbide AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series K210
Item #: 95471991
Brand: Kennametal
Model #: 6351169
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 73.00 |
| Overall Length (Decimal Inch) | 2.8740 |
| Series | K210 |
| Maximum Drilling Depth (Decimal Inch) | 1.0197 |
| Shank Length (Decimal Inch) | 1.4370 |
| Shank Length (mm) | 36.50 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 34.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Material Grade | KCMS15 |
