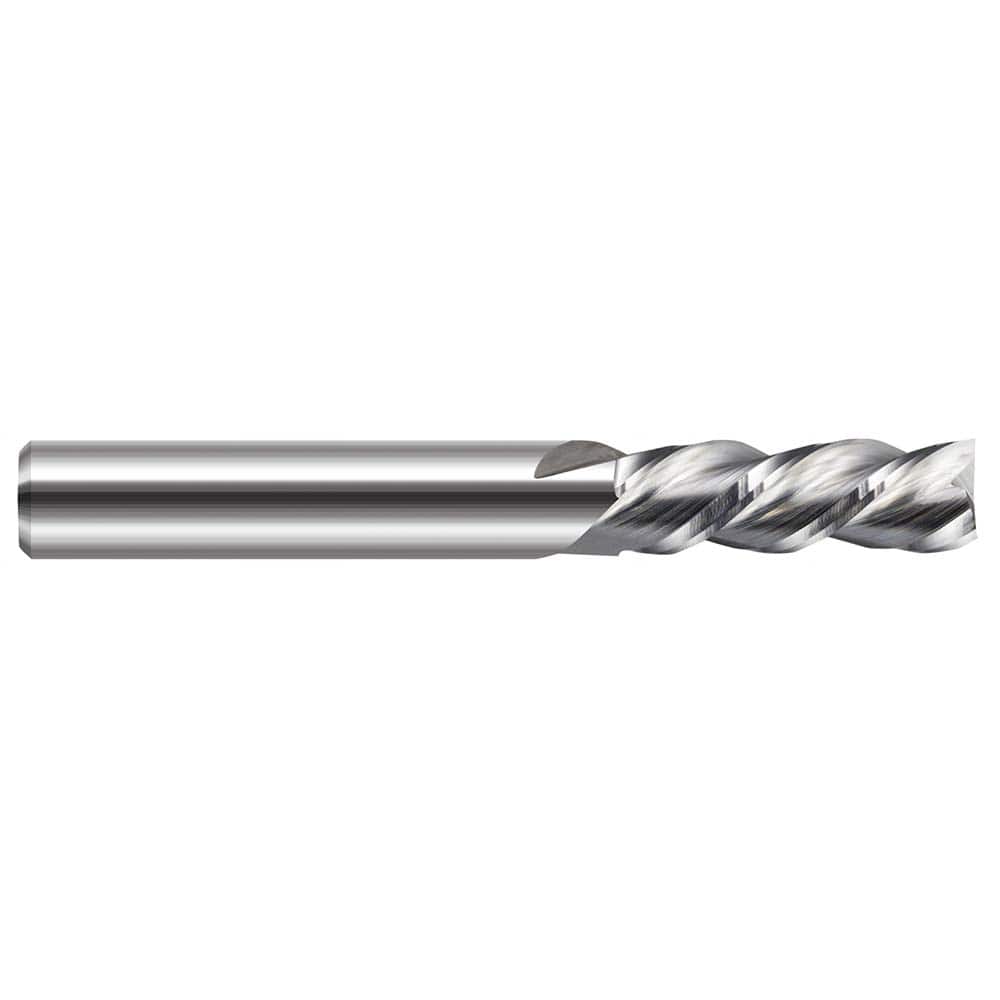

Harvey Tool - Square End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; Length of Cut (Inch): 3/8 ; Length of Cut (Decimal Inch): 0.3750 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 95419008
Brand: Harvey Tool
Model #: 858616
Product Specifications
Square End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; Length of Cut (Inch): 3/8 ; Length of Cut (Decimal Inch): 0.3750 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/4 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Helix | Yes |
| Flute Type | Downcut |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Square - Downcut |
