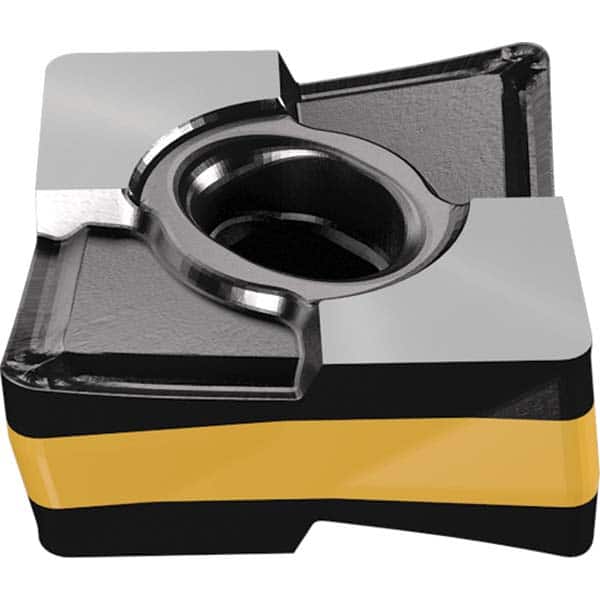

CXMG 12T508-M3P IC8150 Carbide Turning Insert TiCN/Al2O3/TiCN/TiN Finish, 0.8mm Corner Radius, 5.79mm Thick
Item #: 95410288
Brand: Iscar
Model #: 3336028
Product Specifications
| Insert Style | CXMG |
| Insert Shape Code | C |
| Insert Size Code | 508 |
| Insert Shape | Diamond |
| Clearance Code | X |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC8150 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Thickness | 5.79 |
| Insert Thickness (Decimal Inch) | 0.2280 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Series | Logiq4turn |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5410 |
| Insert Length (mm) | 13.80 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | M3P |
| Coating/Finish | TiCN; TiN; Al2O3 |
