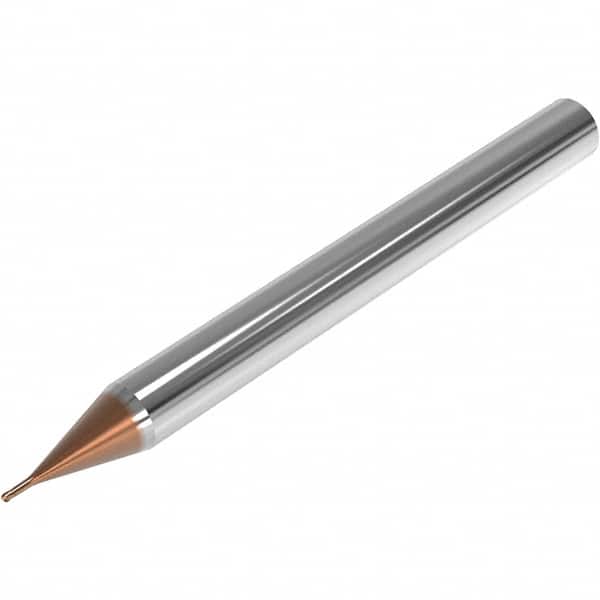

Seco - 3mm Diam, 3mm LOC, 2 Flute Solid Carbide Ball End Mill - HXT Finish, Single End, 50mm OAL, 4mm Shank Diam, Spiral Flute
Item #: 95240313
Brand: Seco
Model #: 03205037
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
HXT is a hard top coating that offers advanced thermal protection and high wear resistance. HXT is a proprietary coating exclusive to Seco Tools, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1181 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 3.00 |
| Material | Solid Carbide |
| Overall Length (mm) | 50.00 |
| Shank Diameter (mm) | 4.00 |
| Finish/Coating | HXT |
| Single or Double End | Single |
| Helix Angle | 28 |
| Neck Length (Decimal Inch) | 0.2362 |
| Extended Reach | Yes |
| Material Grade | Micrograin |
| Helix Style | Medium |
| Flute Type | Spiral |
| Undercutting | No |
| Length Type | Regular |
| Reach Length (mm) | 9.00 |
| Series/List | JMB112 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
