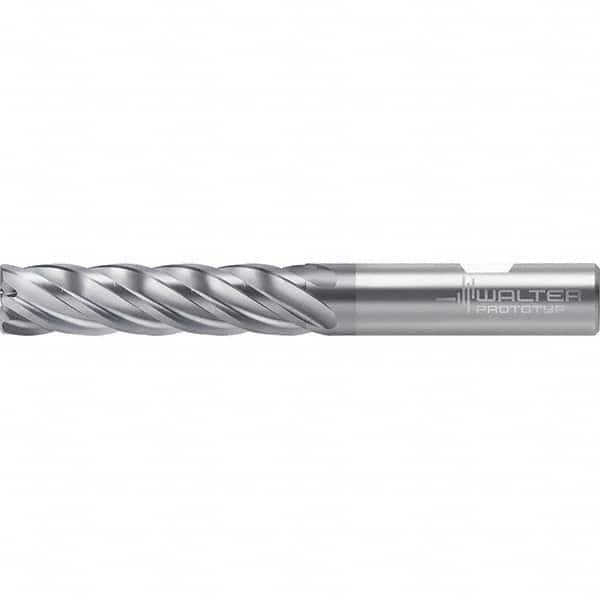

Corner Radius End Mill: 0.6299″ Dia, 0.031″ Radius, 6 Flutes, Solid Carbide 35 ° Helix, Corner Radius End, Series MD133
Item #: 95229795
Brand: Walter-Prototyp
Model #: 7496820
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Mill Diameter (mm) | 16.00 |
| Corner Radius (mm) | 0.80 |
| Length of Cut (mm) | 66.00 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 16.00 |
| Overall Length (mm) | 125.00 |
| Minimum Helix Angle | 35.00 |
| Maximum Helix Angle | 35.00 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal |
| Secondary Workpiece Material Code | S; N |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | WJ30RA |
| Series | MD133 |
| Single Or Double End | Single |
