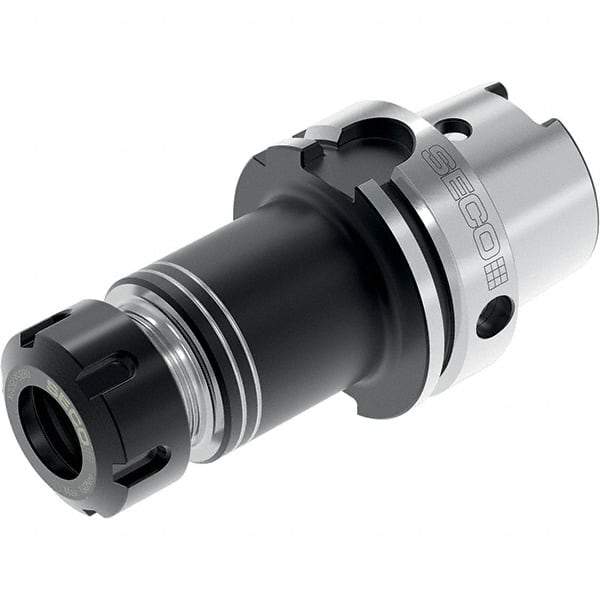

Seco - 20mm Capacity, 160mm Projection, ER32 Collet Chuck - 223mm OAL
Item #: 95135216
Brand: Seco
Model #: 03229642
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Modular Connection Size | HSK125 |
| Projection (mm) | 160.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 2 |
| Maximum Collet Capacity (mm) | 20.00 |
| Overall Length (mm) | 223.00 |
| Nose Type | Extended Nose |
| Actuator Type | Drawbar |
| Type | ER Collet |
| Nose Diameter (mm) | 50.00 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 50.00 |
