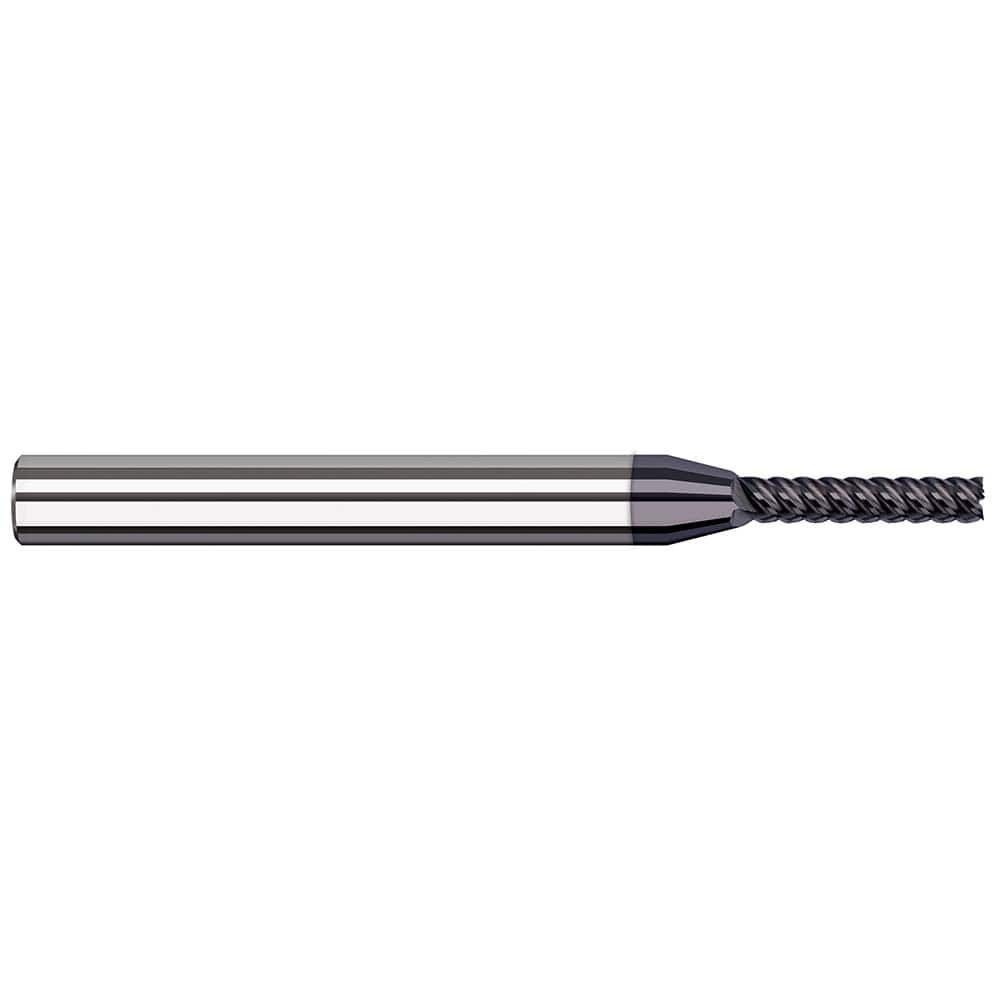

Square End Mill: 0.01'' Dia, 3/64'' LOC, 1/8'' Shank Dia, 2-1/2'' OAL, 4 Flutes, Solid Carbide Single End, AlTiN Finish, 41 ° Variable Helix, RH Cut, RH Flute
Item #: 95118808
Brand: Harvey Tool
Model #: 62610-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0100 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/64 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 41 |
| Variable Helix | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.1000 |
| Length of Cut (Decimal Inch) | 0.0500 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
