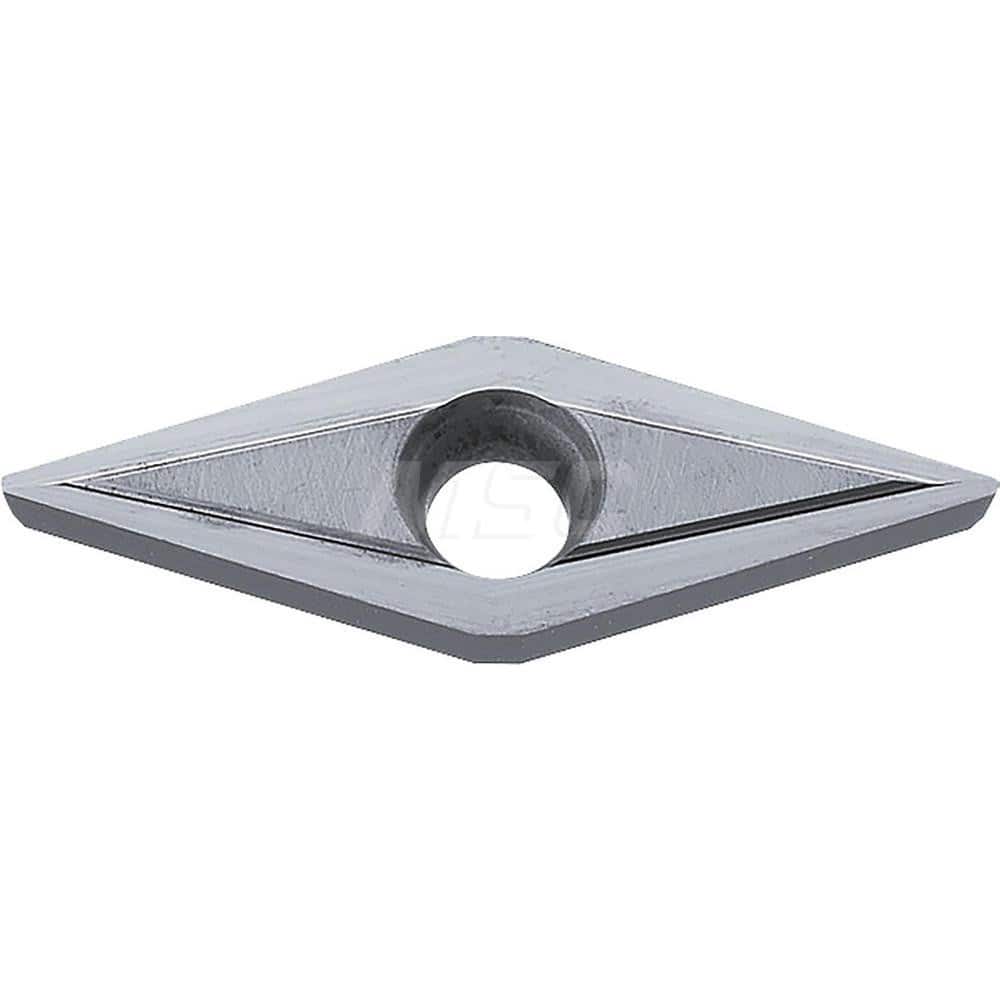

Kyocera VBGT 2202FNZ TN60 Grade Uncoated Cermet, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel
Item #: 95020137
Brand: Kyocera
Model #: TSJ63349
Product Specifications
| Insert Style | VBGT |
| Insert Shape Code | V |
| Insert Size Code | 2202 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Material | Cermet |
| Manufacturer Grade | TN60 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 1/4 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Rake | Positive |
| Primary Workpiece Material | P |
| Iso Code | VBGT110301FN-Z |
| Manufacturers Catalog Number | VBGT2202FNZTN60 |
| Chip Breaker | T |
| Style | VBGT |
| Full Radius | No |
| Coating/Finish | TiCN; NbC |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
