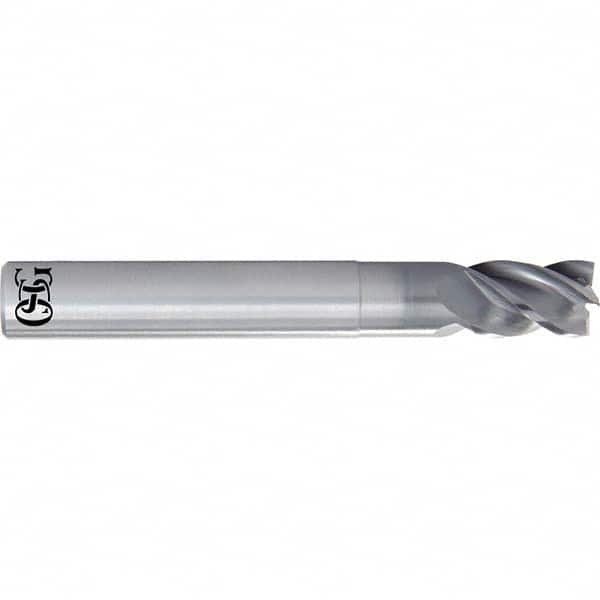

Square End Mill: 3/4'' Dia, 1'' LOC, 3/4'' Shank Dia, 5'' OAL, 4 Flutes, Solid Carbide Single End, Duarise Finish, Straight Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 8230
Item #: 94889789
Brand: OSG
Model #: 82301221
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | Duarise |
| Overall Length (Inch) | 5 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 1.0000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Direction | Right Hand |
| Flute Type | Straight |
| Helix Style | Medium |
| Length Type | Stub |
| Mill Diameter Tolerance | +0.0000/-0.0012 in |
| Series | 8230 |
