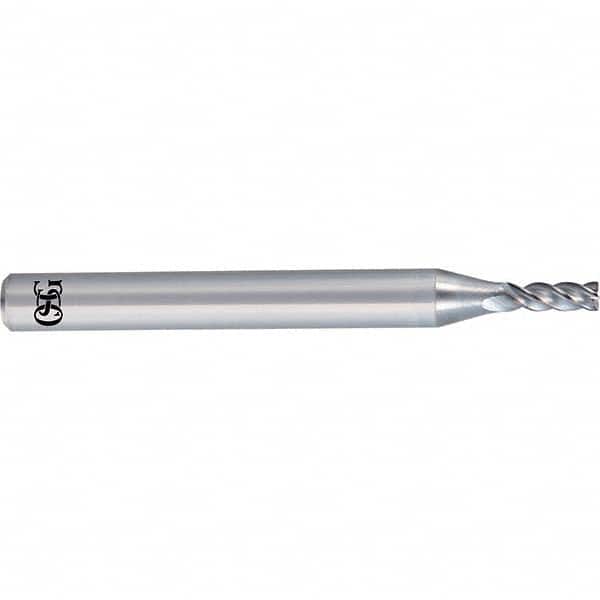

Square End Mill: 11mm LOC, 6mm Shank Dia, 60mm OAL, 4 Flutes, Solid Carbide Single End, Duarise Finish, Straight Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 8205
Item #: 94889722
Brand: OSG
Model #: 8555840
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 11.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | Duarise |
| Shank Diameter (mm) | 6.00 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Overall Length (mm) | 60.00 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Direction | Right Hand |
| Flute Type | Straight |
| Helix Style | Medium |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.00/-0.02 mm |
| Series | 8205 |
