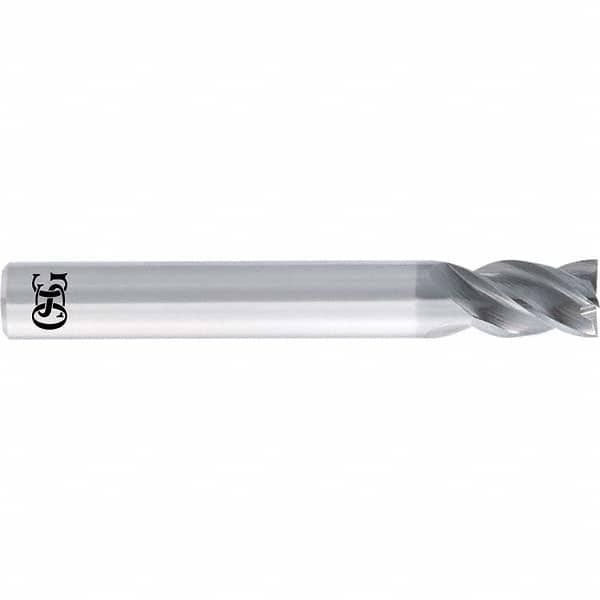

Square End Mill: 1/8'' Dia, 3/16'' LOC, 1/8'' Shank Dia, 2'' OAL, 4 Flutes, Solid Carbide Single End, Duarise Finish, Straight Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 8200
Item #: 94889680
Brand: OSG
Model #: 82005021
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/16 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Duarise |
| Overall Length (Inch) | 2 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 0.1875 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Flute Type | Straight |
| Helix Style | Medium |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.0000/-0.0012 in |
| Series | 8200 |
