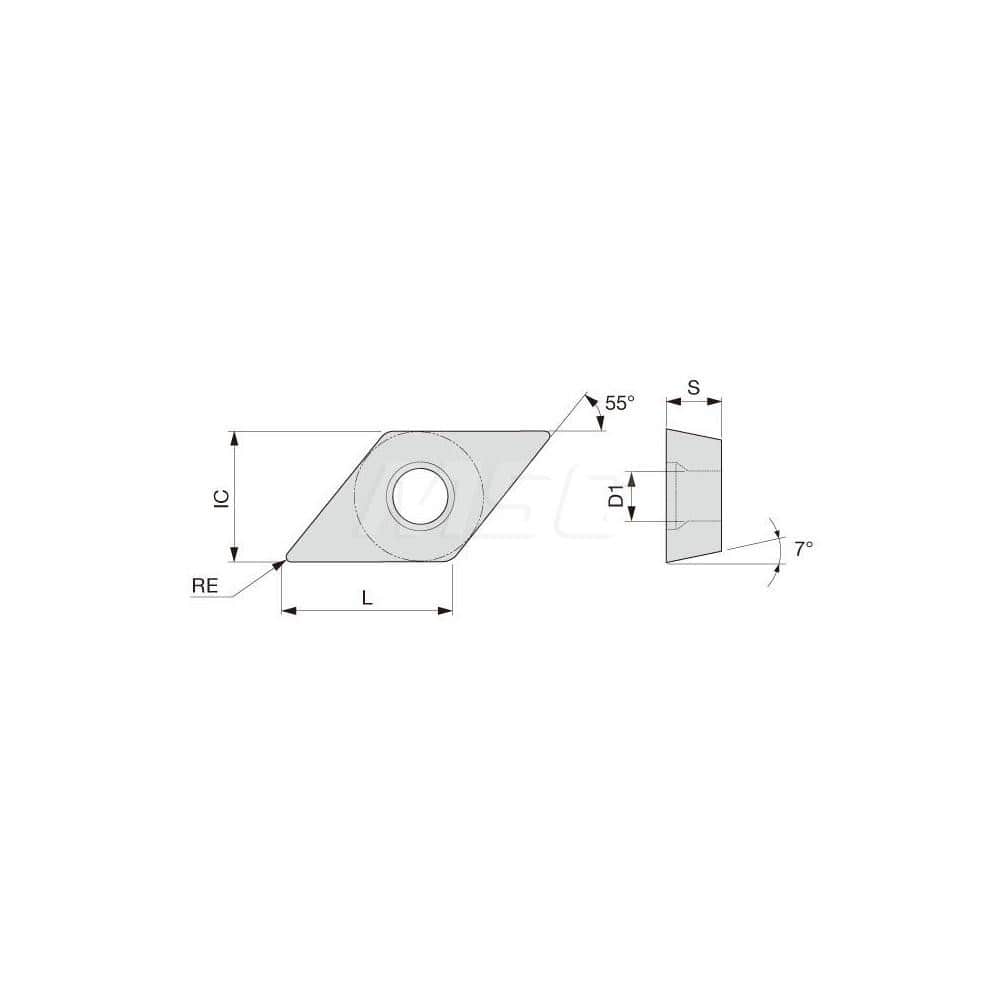

Turning Insert: DCGT32.50.5F-01 SH725, Solid Carbide TiAlN Finish, Neutral, 3/8″ Inscribed Circle, 0.0080″ Corner Radius, 55.0 ° N/A Diamond, Series DCGT
Item #: 94745544
Brand: Tungaloy
Model #: 6737246
Product Specifications
| Insert Style | DCGT |
| Insert Size Code | 32.50.5 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH725 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0157 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | DCGT32.50.5F01SH725 |
| Iso Code | DCGT11T302F-01 SH725 |
| Chip Breaker | 01 |
| Coating/Finish | TiAlN |
