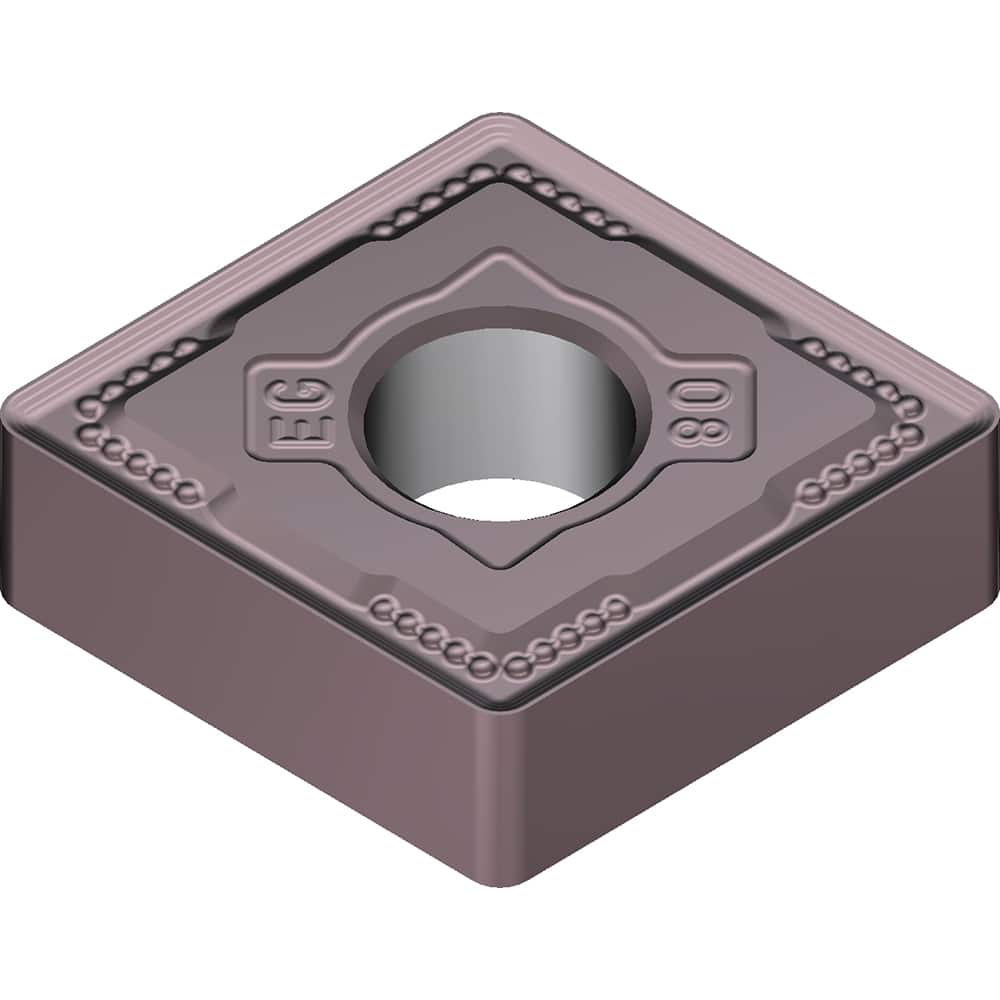

Sumitomo - CNMG431EEG AC6040M Carbide Turning Insert
Item #: 94670049
Brand: Sumitomo
Model #: 196DCMU
Product Specifications
| Insert Style | CNMG |
| Insert Size | 431 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5079 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | AC6040M |
| Coating | Absotech |
| Material Grade | M40; M30 |
| Chip Breaker | EEG |
| ISO Number | CNMG120404N-EG |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CNMG431EEG-AC6040M |
| Primary Workpiece Material | Stainless Steel |
