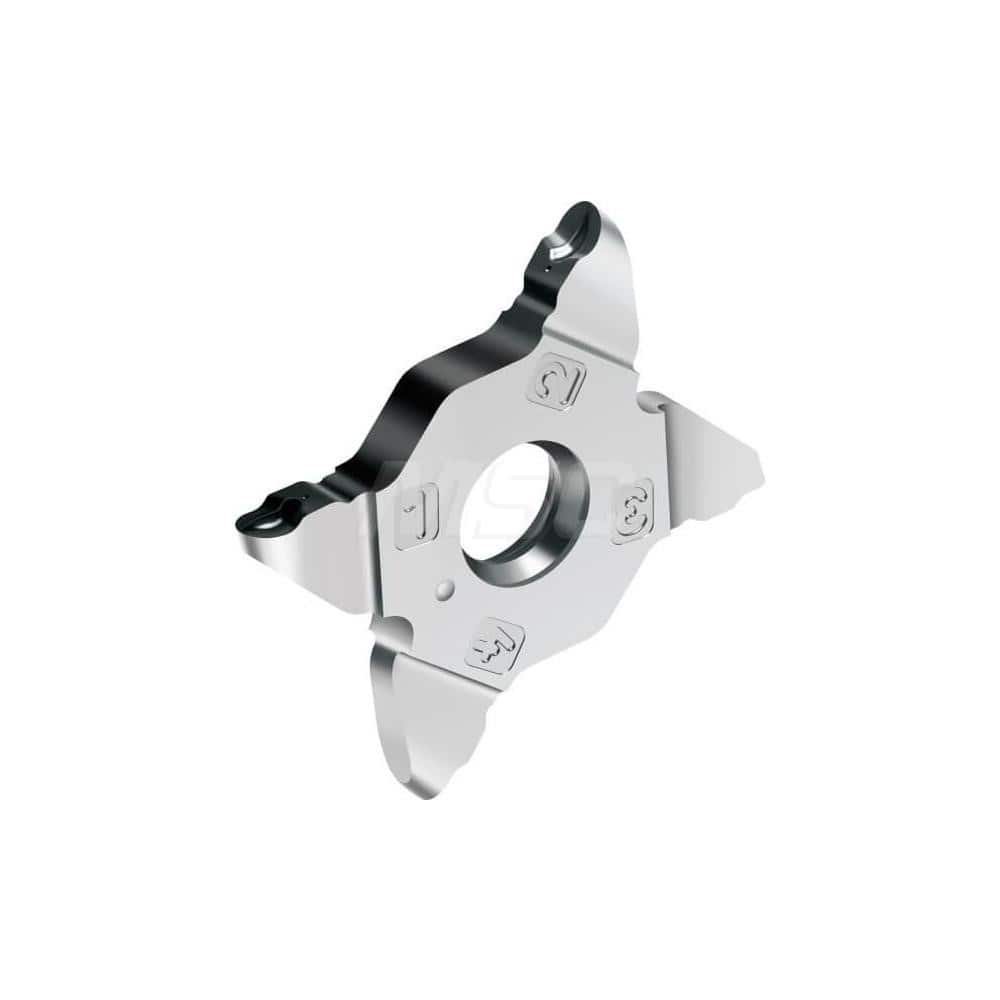

Grooving Insert: MX22RF5 WSM13S, Solid Carbide Al Finish, Neutral, 0.079″ Cutting Width, Series MX-RF5
Item #: 94646007
Brand: Walter
Model #: 7675847
Product Specifications
| Insert Style | MX22 |
| Insert Size Code | 2E200N10 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM13S |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0390 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | MX-RF5 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | MX222E200N10RF5 WSM13S |
| Iso Code | MX222E200N10RF5 WSM13S |
| Standards | ISO; ANSI |
| Maximum Corner Radius (Decimal Inch) | 0.0390 |
| Chip Breaker | RF5 |
| Coating/Finish | Al |
