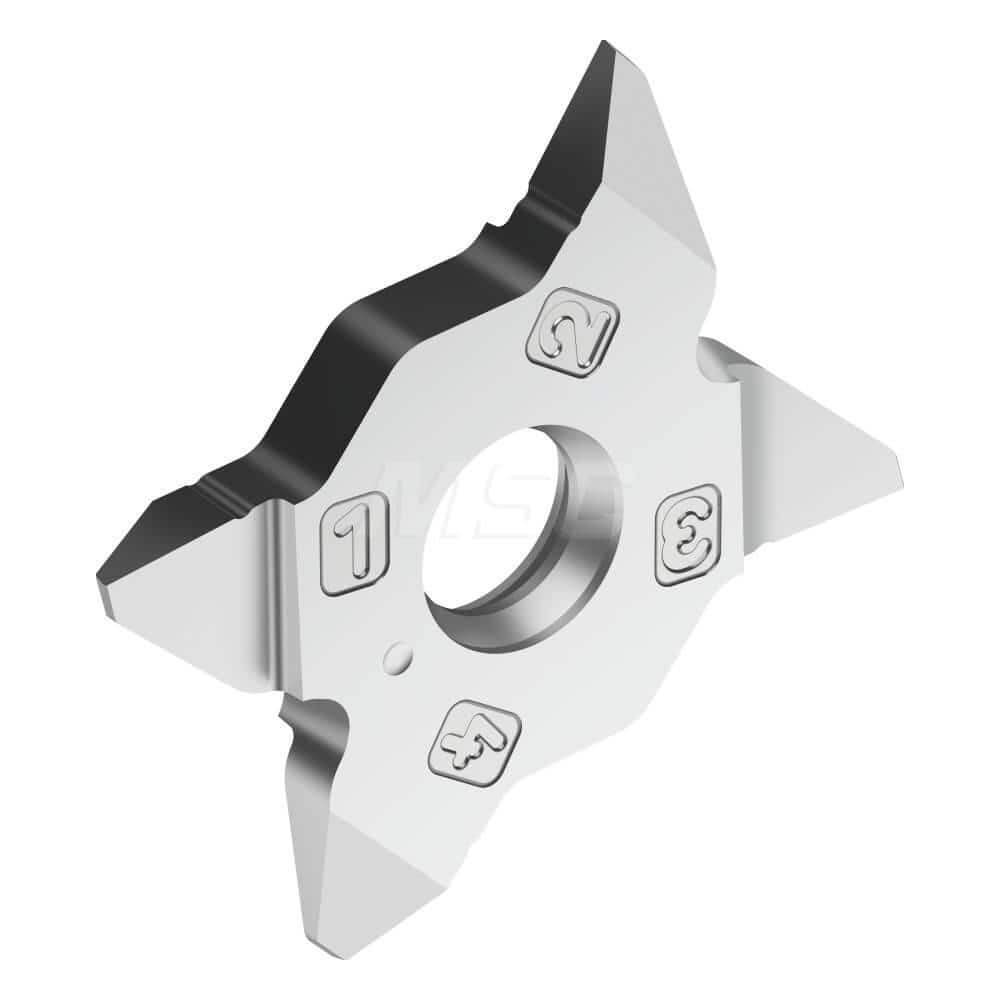

Grooving Insert: MX22VG8 WSM23S, Solid Carbide Al Finish, Left Hand, 0.11″ Cutting Width, Series MX-L-VG8-3GRAD
Item #: 94645728
Brand: Walter
Model #: 7798744
Product Specifications
| Insert Style | MX22 |
| Insert Size Code | 2L280L01 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (mm) | 5.50 |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0020 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Recessing |
| Series | MX-L-VG8-3GRAD |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.9060 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | MX222L280L01VG8 WSM23S |
| Iso Code | MX222L280L01VG8 WSM23S |
| Standards | ISO; ANSI |
| Maximum Corner Radius (Decimal Inch) | 0.0020 |
| Chip Breaker | VG8 |
| Coating/Finish | Al |
