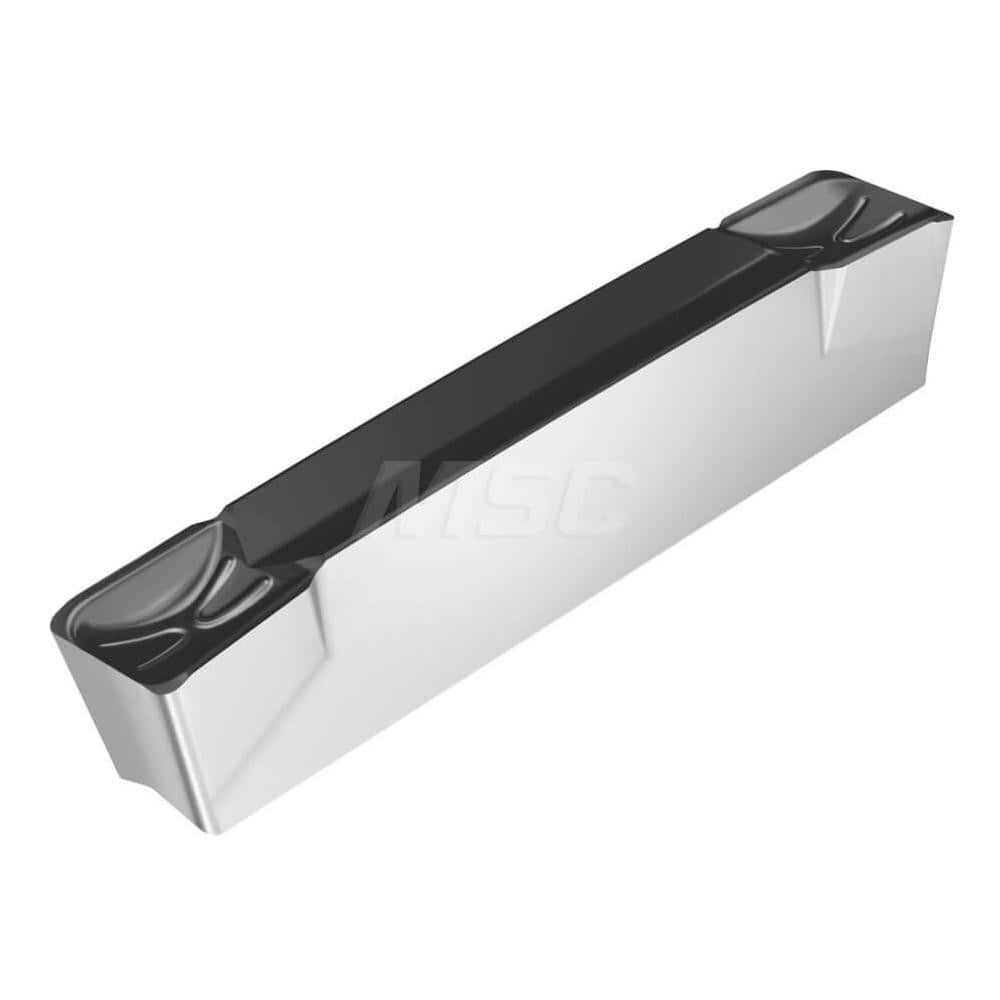

Grooving Insert: GX34GD6 WSM23S, Solid Carbide Al Finish, Neutral, 0.157″ Cutting Width, Series Tiger-tec Silver
Item #: 94645603
Brand: Walter
Model #: 7318907
Product Specifications
| Insert Style | GX34 |
| Insert Size Code | 3E400N04 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 32.00 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0160 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | Tiger-tec Silver |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.3390 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | GX343E400N04GD6 WSM23S |
| Iso Code | GX343E400N04GD6 WSM23S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GX34-3E400N04-GD6 WSM23S |
| Chip Breaker | GD6 |
| Coating/Finish | Al |
