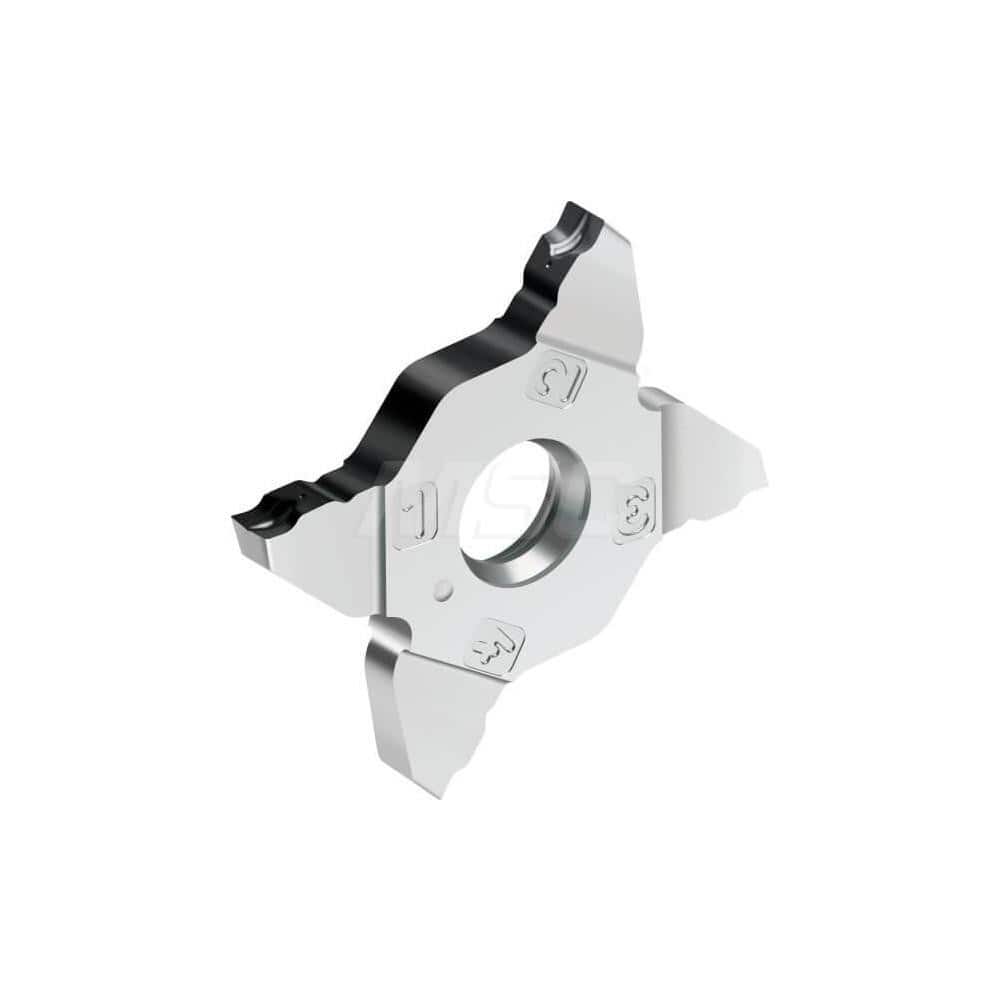

Grooving Insert: MX22CF5 WSM13S, Solid Carbide Al Finish, Neutral, 0.039″ Cutting Width, Series MX-CF5
Item #: 94645413
Brand: Walter
Model #: 7798745
Product Specifications
| Insert Style | MX22 |
| Insert Size Code | 2E100N01 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM13S |
| Cutting Width (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (mm) | 3.50 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0040 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | MX-CF5 |
| Coating Process | PVD |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | MX222E100N01CF5 WSM13S |
| Iso Code | MX222E100N01CF5 WSM13S |
| Standards | ISO; ANSI |
| Chip Breaker | CF5 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0390 |
| Coating/Finish | Al |
