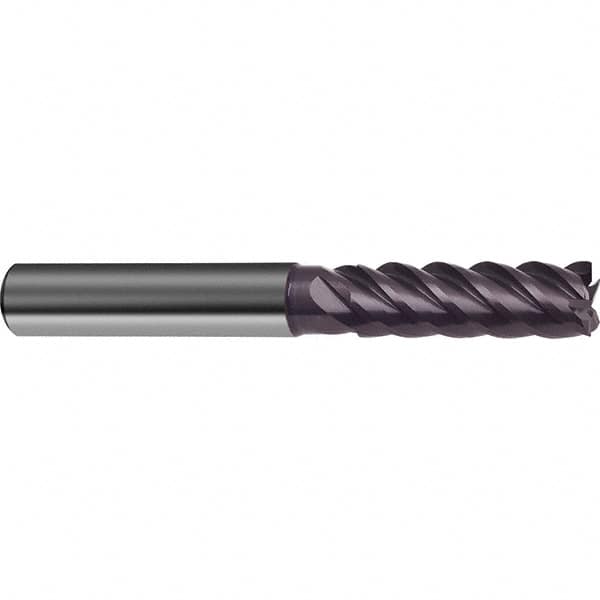

Guhring - Roughing & Finishing End Mills Mill Diameter (mm): 5.00 Mill Diameter (Decimal Inch): 0.1969
Item #: 94600855
Brand: Guhring
Model #: 9067630050000
Exact Tooling IR#: 04
Features and Benefits
Nano-A is a multi-layer coating that combines TiAlN and AlTiN coatings in a micro-layer structure that is harder and more wear resistant. It is used at high speeds on alloy steels, stainless steels and aerospace materials. Nano-A is a proprietary coating exclusive to Guhring, Inc.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (mm): 5.00 ; Mill Diameter (Decimal Inch): 0.1969 ; End Type: Square ; Number of Flutes: 5 ; Finish/Coating: Nano-A ; Length of Cut (mm): 15.0000
| Mill Diameter (mm) | 5.00 |
| Mill Diameter (Decimal Inch) | 0.1969 |
| End Type | Square |
| Number of Flutes | 5 |
| Finish/Coating | Nano-A |
| Length of Cut (mm) | 15.0000 |
| Length of Cut (Decimal Inch) | 0.5906 |
| Shank Diameter (mm) | 6 |
| Overall Length (mm) | 65 |
| Centercutting | Center Cutting |
| Shank Type | Straight |
| Helix Angle | 45 |
| Reach Length (Decimal Inch) | 1.02 |
| Material Grade | Solid Carbide |
| Single or Double End | Single |
| Length Type | Extra Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series/List | 6763 |
