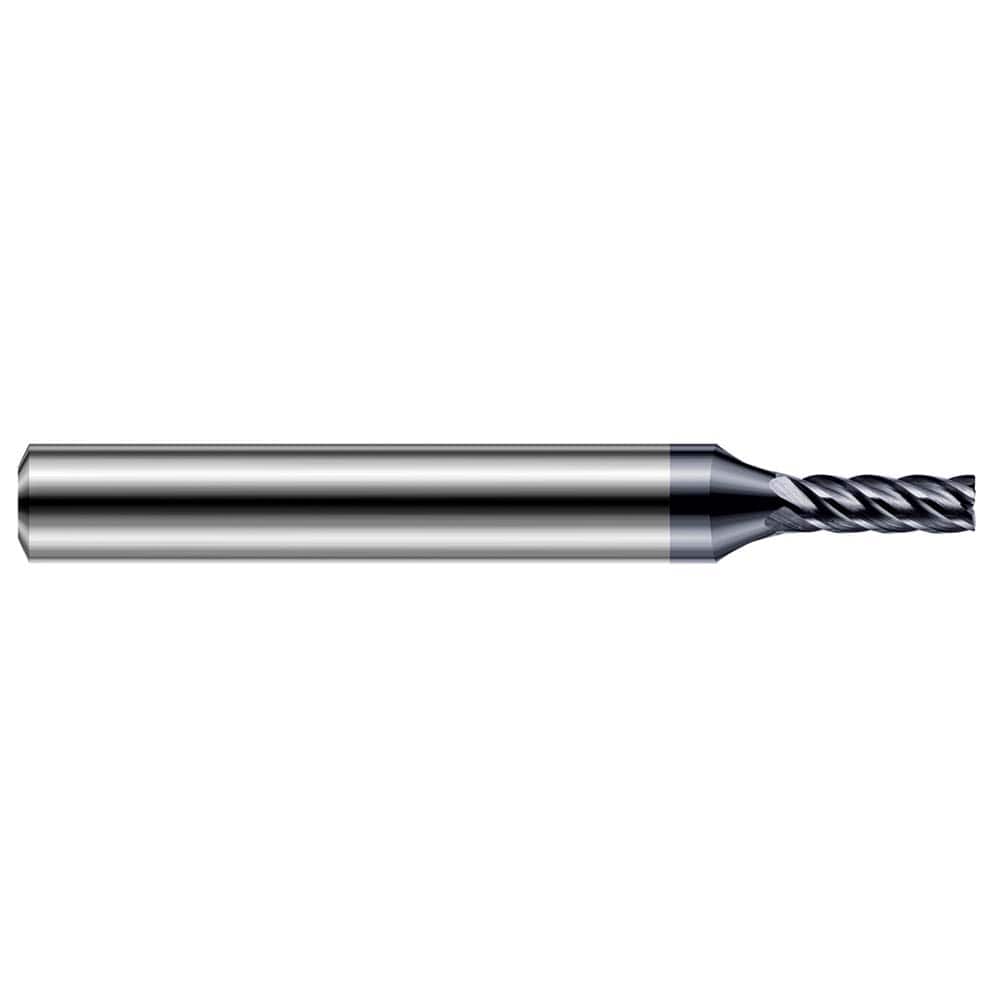

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 94439221
Brand: Harvey Tool
Model #: 852208-C6
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Helix | Yes |
| Single or Double End | Single |
| Centercutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Series/List | End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc |
