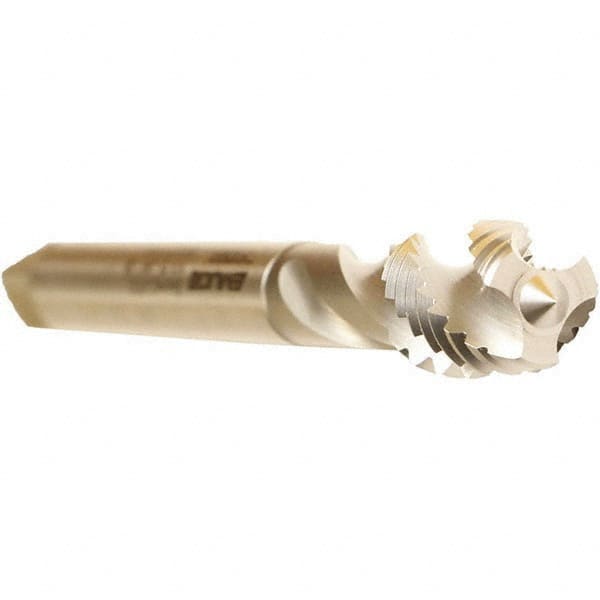

Emuge - M20x2.50 Metric 3 Flute 6H Modified Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 4-15/32" OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 94382561
Brand: Emuge
Model #: AU503000.0120
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M20x2.50 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.4688 |
| Overall Length (Inch) | 4-15/32 |
| Helix Angle | 35 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 1.1810 |
| Thread Length (mm) | 30.00 |
| Flute Type | Medium Spiral |
| Series/List | Enorm |
| Shank Diameter (Decimal Inch) | 0.6520 |
| Shank Length (Decimal Inch) | 3.2890 |
| Material Application | Cast Iron; Stainless Steel; Steel |
