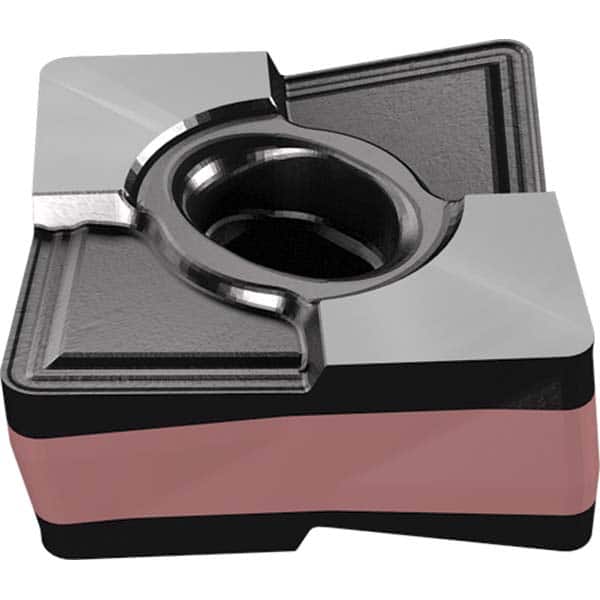

CXMG 12T508-M3M IC6025 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 0.539″ Long, 1/2″ Inscribed Circle, 0.8mm Corner Radius, 0.228″ Thick
Item #: 94309259
Brand: Iscar
Model #: 3336032
Product Specifications
| Insert Style | CXMG |
| Insert Shape Code | C |
| Insert Size Code | 508 |
| Insert Shape | Diamond |
| Clearance Code | X |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC6025 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Thickness (Decimal Inch) | 0.2280 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Series | Logiq4turn |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5410 |
| Insert Length (mm) | 13.80 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | M3M |
| Width (Decimal Inch - 4 Decimals) | 0.2280 |
| Coating/Finish | TiCN; TiN; Al2O3 |
