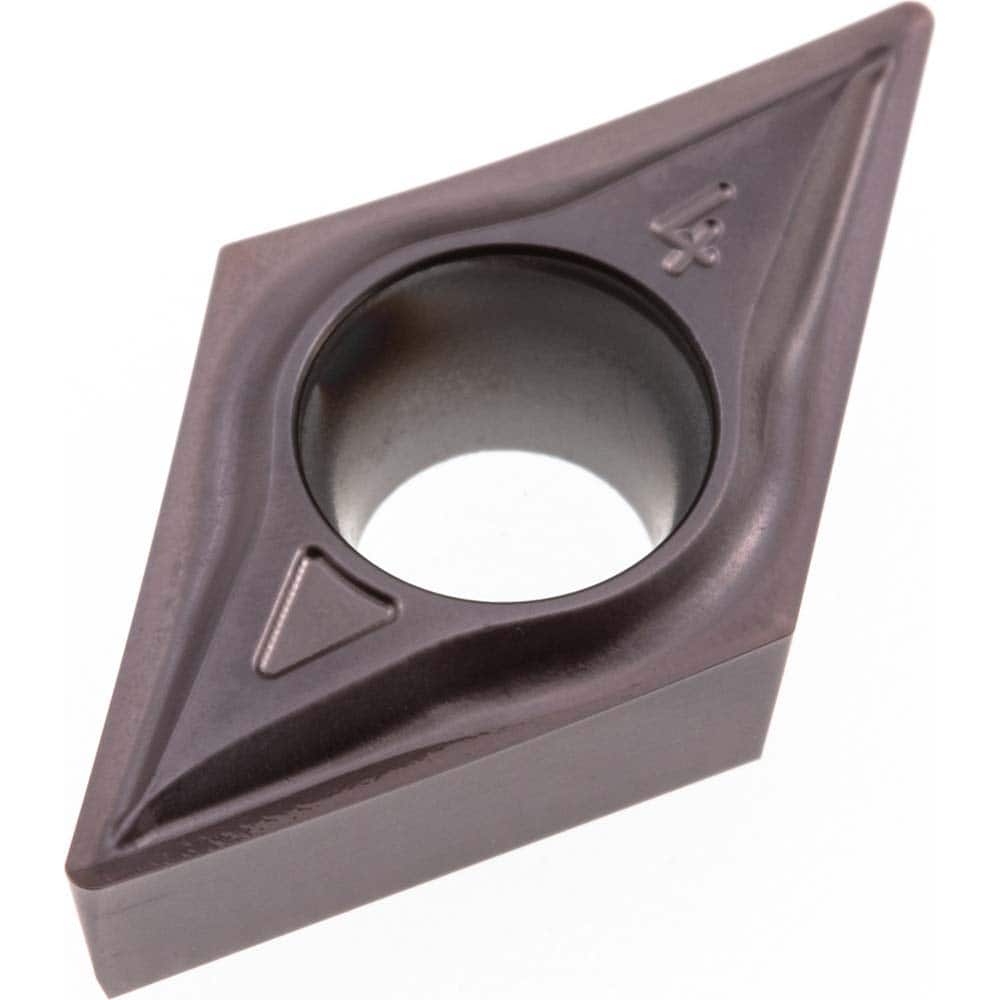

DCGT32.505ANASF AM5015 Carbide Turning Insert Neutral, 11.6mm Long, 9.53mm Inscribed Circle, 0.2mm Corner Radius, 3.97mm Thick, 55° Diamond
Item #: 94226560
Brand: Arno
Model #: 81356
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 32.50.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AM5015 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Maximum Depth of Cut (mm) | 2.00 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (mm) | 11.60 |
| Primary Workpiece Material | P; S; M |
| Secondary Workpiece Material | H; K; N |
| Iso Code | DCGT 11T302EN-ASF AM5015 |
| Manufacturers Catalog Number | DCGT 11T302EN-ASF |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | ASF |
| Cutting Edge Style | Rounded |
| Style | DCGT |
| Industry Standard Number | DCGT 11T302EN-ASF AM5015 |
| Width (Mm - 2 Decimals) | 9.53 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Machining; Turning |
 | |
| MSC Part # | 94226560 |
| Mfr Part # | 81356 |
| Country of OriginCountry of Origin is subject to change | Germany |
