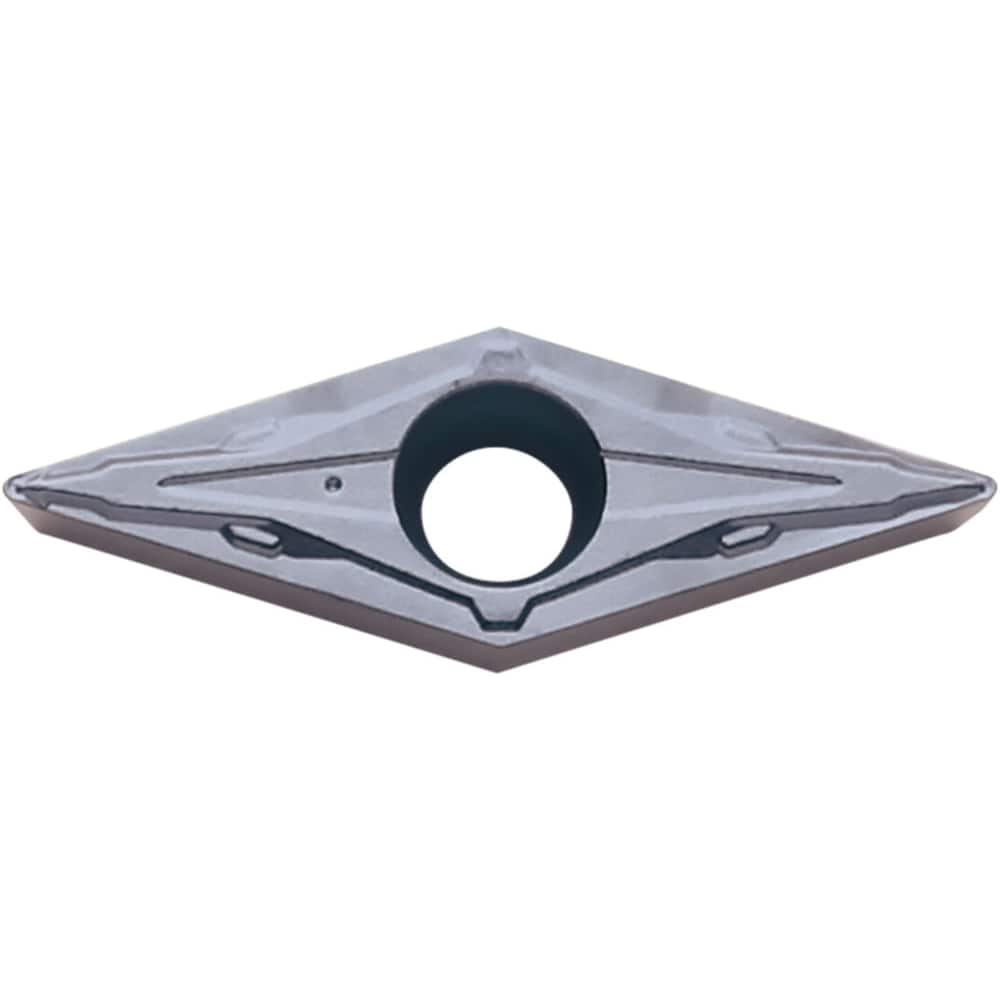

VCMT080202PP PR1225 Carbide Turning Insert Megacoat Finish, Neutral, 3/16″ Inscribed Circle, 0.0079″ Corner Radius, 0.0937″ Thick, 35° Diamond
Item #: 94215134
Brand: Kyocera
Model #: TKB07663
Product Specifications
| Insert Style | VCMT |
| Insert Shape Code | V |
| Insert Size Code | 151505 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | PR1225 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Inscribed Circle (Inch) | 3/16 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P |
| Manufacturers Catalog Number | VCMT151505PPPR1225 |
| Chip Breaker | T |
| Multi-Use Tool | Yes |
| Coating/Finish | Megacoat |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
