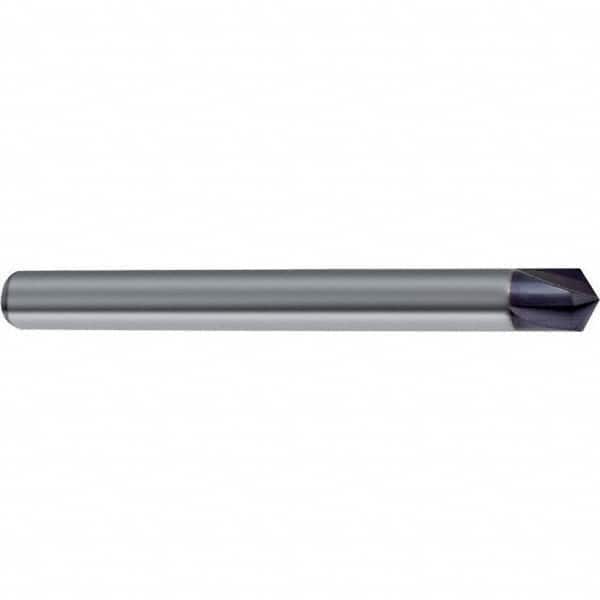

Guhring - 6mm Diam 4 Flute Single End Solid Carbide Chamfer Mill
Item #: 98859150
Brand: Guhring
Model #: 9067140060000
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (mm) | 6.00 |
| Included Angle A | 120 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | TiAlN |
| Overall Length (mm) | 57.00 |
| Shank Diameter (mm) | 6.00 |
| Number of Flutes | 4 |
| End Type | Single |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering |
| Material Application | Aluminum; Cast Iron; Stainless Steel; Steel |
| Length of Cut (mm) | 1.80 |
| Series/List | 6714 |
