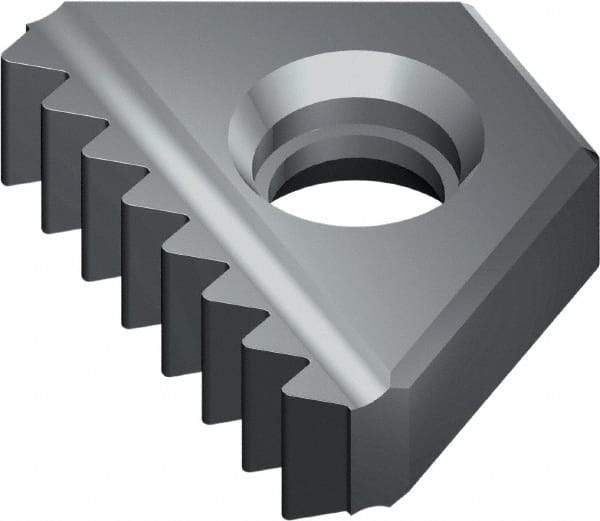

Vargus - 18 TPI, Internal Thread, NPT Standard, 2I VTX Grade Thread Mill Insert - Carbide, TiAlN Coating
Item #: 93974848
Brand: Vargus
Model #: 64892
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | 2I |
| Thread Type | Internal |
| Thread Standard | NPT |
| Threads Per Inch | 18 |
| Length (Decimal Inch) | 2.4409 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
