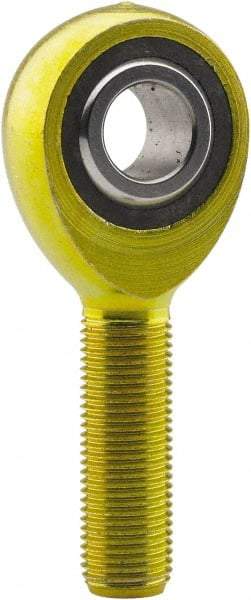

Made in USA - 5/8" ID, 1-1/2" Max OD, 7,400 Lb Max Static Cap, Plain Male Spherical Rod End - 5/8-18 RH, 1-5/8" Shank Length, Carbon Steel with Plastic Raceway - Benchmark Tooling

Made in USA - 5/8" ID, 1-1/2" Max OD, 7,400 Lb Max Static Cap, Plain Male Spherical Rod End - 5/8-18 RH, 1-5/8" Shank Length, Carbon Steel with Plastic Raceway


Item #: 93870806
Brand: Made in USA
Exact Tooling IR#: 04

Product Specifications
Inside Diameter (Decimal Inch) 0.6250
Inside Diameter (Inch) 5/8
Style Plain Male Rod End
Maximum Outside Diameter (Decimal Inch) 1.5000
Maximum Outside Diameter (Inch) 1-1/2
Maximum Static Load Capacity (Pounds) 7400.0
Width (Inch) 3/4
Width (Decimal Inch) 0.7500
Thread Size 5/8-18
Material Carbon Steel
Raceway Material Plastic
Shank Length (Decimal Inch) 1.6250
Thread Direction Right Hand
$21.31
