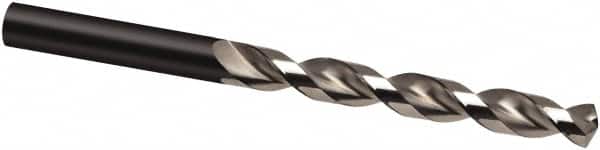

Jobber Length Drill Bit: 0.05″ Dia, 130 °, Cobalt Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 622
Item #: 93764470
Brand: Guhring
Model #: 9006220012700
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0500 |
| Drill Bit Size (mm) | 1.27 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular |
| Flute Type | Parabolic |
| Point Type | Cone Relief |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0500 |
| Overall Length (mm) | 38.00 |
| Flute Length (mm) | 16.00 |
| Series | 622 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 1.27 |
| Maximum Drilling Depth (Decimal Inch) | 0.5550 |
| Maximum Drilling Depth (mm) | 14.10 |
| Shank Length (mm) | 22.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Specification Designation | DIN |
