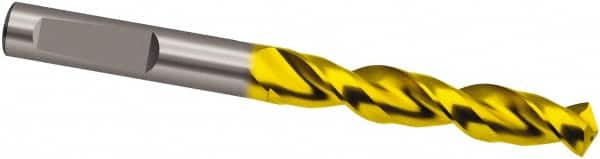

Jobber Length Drill Bit: 0.689″ Dia, 130 °, Cobalt TiN Finish, Right Hand Cut, Parabolic Flute, Whistle Notch Shank, Series 1132
Item #: 93734564
Brand: Guhring
Model #: 9011320175000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6890 |
| Drill Bit Size (mm) | 17.50 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular |
| Flute Type | Parabolic |
| Point Type | Cone Relief |
| Coolant Through | Yes |
| Shank Type | Whistle Notch |
| Number of Flutes | 2 |
| Overall Length (mm) | 143.00 |
| Flute Length (mm) | 93.00 |
| Series | 1132 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 18.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.6280 |
| Maximum Drilling Depth (mm) | 66.75 |
| Shank Length (mm) | 48.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Standards | DIN 6535 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
| Specification Designation | DIN |
