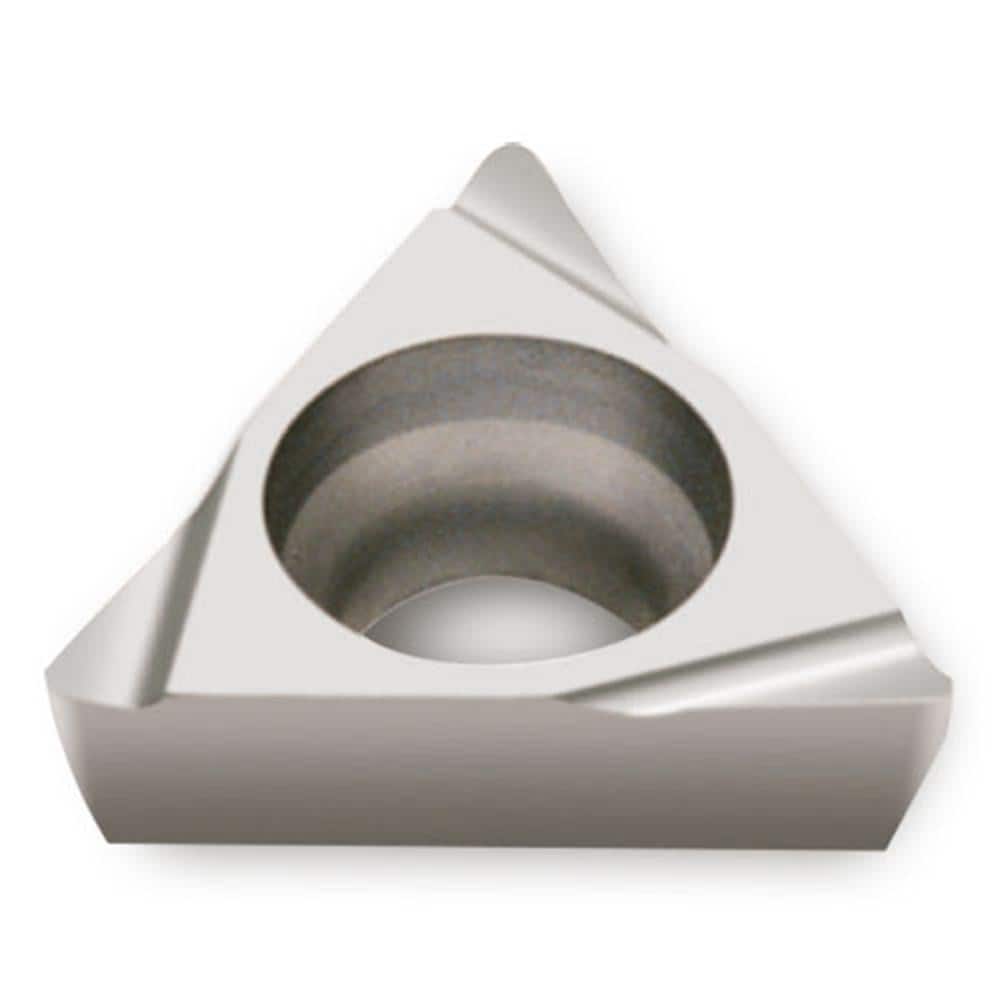

TPGX110302L PV3010 Carbide Turning Insert TiCN/TiN Finish, LH, 11mm Long, 6.35mm Inscribed Circle, 0.2mm Corner Radius, 3.18mm Thick, 60° Triangle
Item #: 93658185
Brand: Ingersoll Cutting Tools
Model #: 5517932
Product Specifications
| Insert Style | TPGX |
| Insert Shape Code | T |
| Insert Size Code | 220.5 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PV3010 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.50 |
| Hole Diameter (Decimal Inch) | 0.1380 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPGX |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4330 |
| Insert Length (mm) | 11.00 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | None |
| Ansi Code | TPGX220.5LPV3010 |
| Iso Code | TPGX110302L PV3010 |
| Manufacturers Catalog Number | 5517932 |
| Chip Breaker | L |
| Coating/Finish | TiCN; TiN |
| Multi-Use Application | Turning |
 | |
| MSC Part # | 93658185 |
| Mfr Part # | 5517932 |
