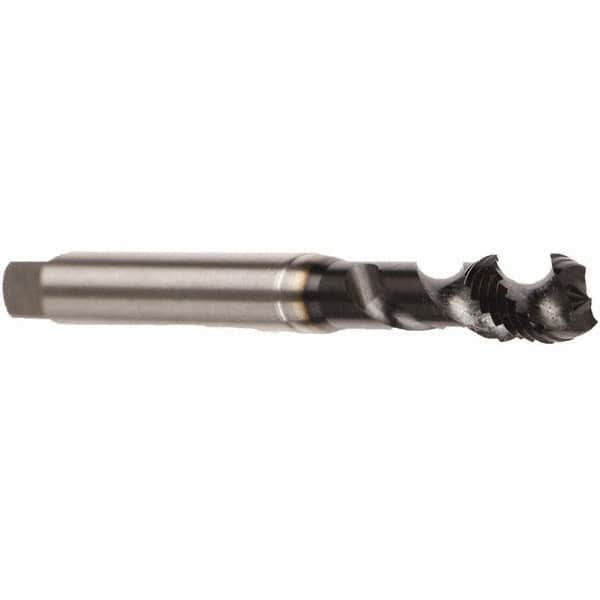

Emuge - M6x1.00 Metric Coarse, 2 Flute, 45° Helix, Modified Bottoming Chamfer, GLT-8 Finish, Cobalt Spiral Flute STI Tap - Right Hand Flute, 3.5433" OAL, 0.315" Shank Diam, 0.3937" Thread Length, 6H (mod) Class of Fit, Series Enorm-Al
Item #: 93584787
Brand: Emuge
Model #: B050S800.0971
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
GLT-8 coatings are diamond-like coatings and provide a hard surface for good thermal protection as well as high surface lubricity. Ideal for machining nonferrous materials and aluminum. GLT-8 is a proprietary coating exclusive to Emuge.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6H (mod) |
| Number of Flutes | 2 |
| Chamfer | Modified Bottoming |
| Finish/Coating | GLT-8 |
| Overall Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Helix Angle | 45 |
| Thread Standard | Metric Coarse |
| Material | Cobalt |
| Flute Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3937 |
| Thread Length (mm) | 10.00 |
| Series/List | Enorm-Al |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Material Application | Aluminum Alloys |
