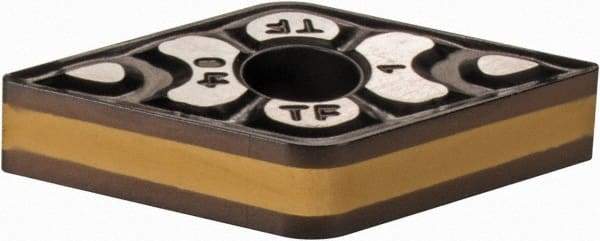

Iscar - DNMG431 TF Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 93406189
Brand: Iscar
Model #: 5508107
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 431 |
| Material | Carbide |
| Length (mm) | 15.49 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | TF |
| ISO Number | DNMG 431-TF |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG 431-TF |
| Included Angle | 55 |
| Series | Isoturn |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
