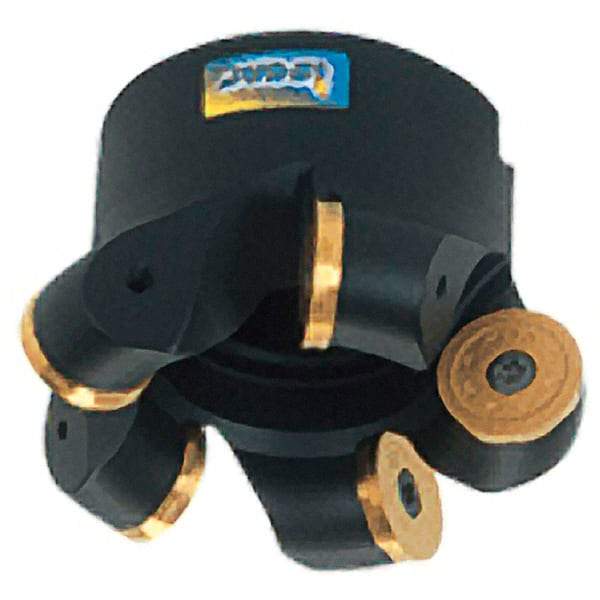

Iscar - 80mm Cut Diam, 10mm Max Depth, 32mm Arbor Hole, 6 Inserts, RC.W Insert Style, Indexable Copy Face Mill - FR Cutter Style, 50mm High, Series RoundMill
Item #: 93341816
Brand: Iscar
Model #: 3102612
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | RoundMill |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RC.W |
| Cutter Style | FR |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.5669 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCCW 2005; RCCW 2005-T; RCMW 2005H-T |
