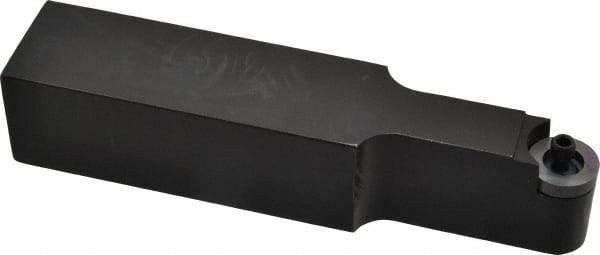

Kennametal - PROON, Neutral Cut, 1-1/4" Shank Height x 1-1/4" Shank Width, Neutral Rake Indexable Turning Toolholder - 6" OAL, RC..64 Insert Compatibility, Series Screw-On
Item #: 93294874
Brand: Kennametal
Model #: 1095804
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PROON |
| Rake | Neutral |
| Series | Screw-On |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | RC..64 |
| Multi-Use Tool | No |
| Insert Holding Method | Lock Pin |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Toolholder Material | Steel |
