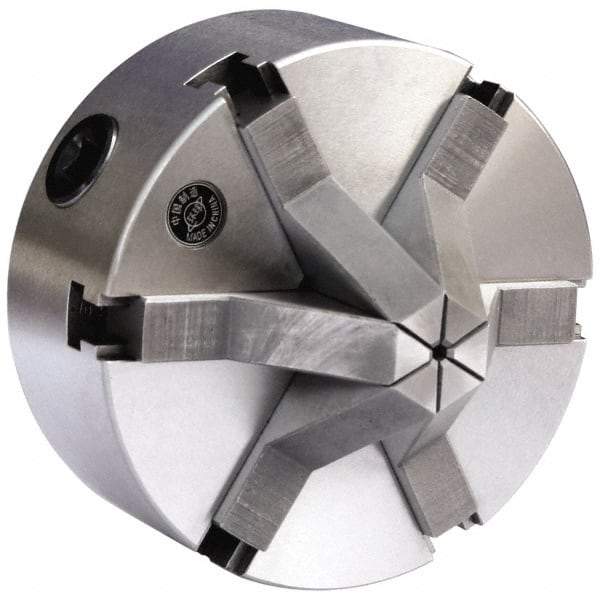

Gibraltar - 6 Jaws, 6" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, 1.6535" Through Hole Diam, Cast Iron
Item #: 93221349
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 6 |
| Number of Jaws | 6 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 42.00 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 6 |
| Minimum Jaw Capacity (Decimal Inch) | 0.1180 |
| Maximum Jaw Capacity (Decimal Inch) | 2.0080 |
| Adjustable | No |
| Body Length (mm) | 66.50 |
| Includes | Set of Internal Sloped Solid Jaws |
