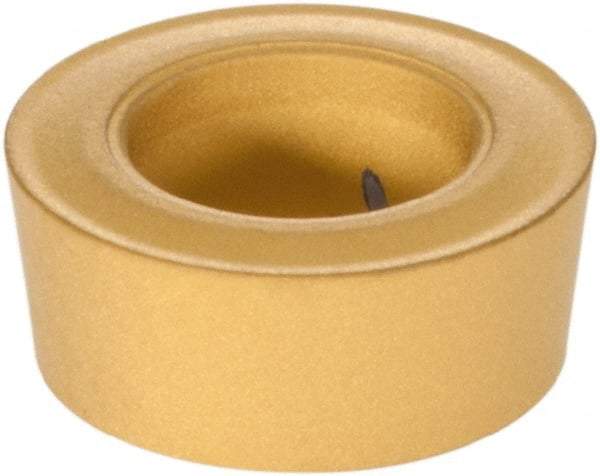

Iscar - RCMT0803M0 14 Grade IC9250 Carbide Turning Insert - TiCN/Al2O3 Finish, Round, 8mm Inscr Circle, 1/8" Thick
Item #: 93130623
Brand: Iscar
Model #: 5507579
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0803M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | IC9250 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | 14 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| ISO Number | RCMT 0803M0-14 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMT 0803M0-14 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Screw |
| Multi Use Application | Facing |
| MultiUseTool | Yes |
| Shape | Round |
