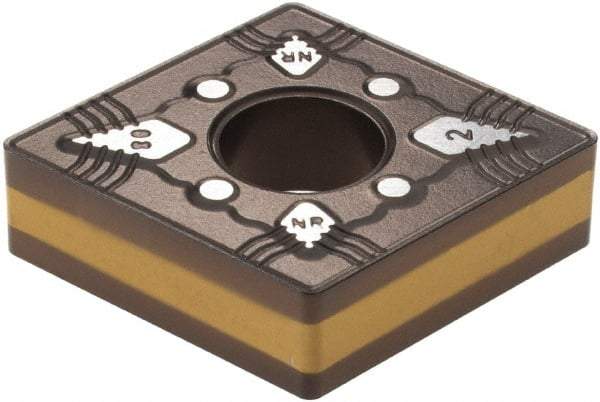

Iscar - CNMG642 NR Grade IC8350 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 93050631
Brand: Iscar
Model #: 5508001
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 642 |
| Material | Carbide |
| Length (mm) | 19.30 |
| Length (Decimal Inch) | 0.7600 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC8350 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | NR |
| ISO Number | CNMG 642-NR |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG 642-NR |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
