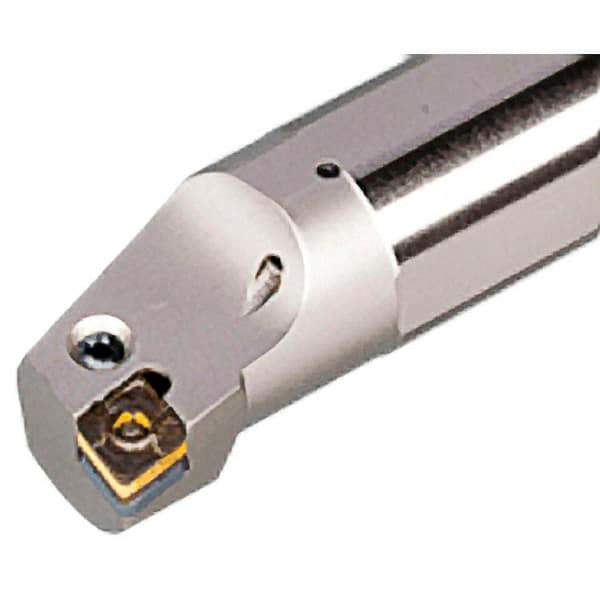

Iscar - 1.97" Min Bore Diam, 12" OAL, 1" Shank Diam, A-PCLN Indexable Boring Bar - 2" Max Bore Depth, CNMX 45.. Insert, Lever Holding Method
Item #: 93049096
Brand: Iscar
Model #: 3602746
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PCLN |
| Series | Heliturn LD |
| Minimum Bore Diameter (Decimal Inch) | 1.9700 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | CNMX 45.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.6500 |
| Rake Angle | -14 |
| Complete Insert Compatibility | CNMX 451-M4MW; CNMX 452-M4MW; CNMX 452-M4PW; CNMX 453-M4MW; CNMX 453-M4PW; CNMX 454-M4PW |
