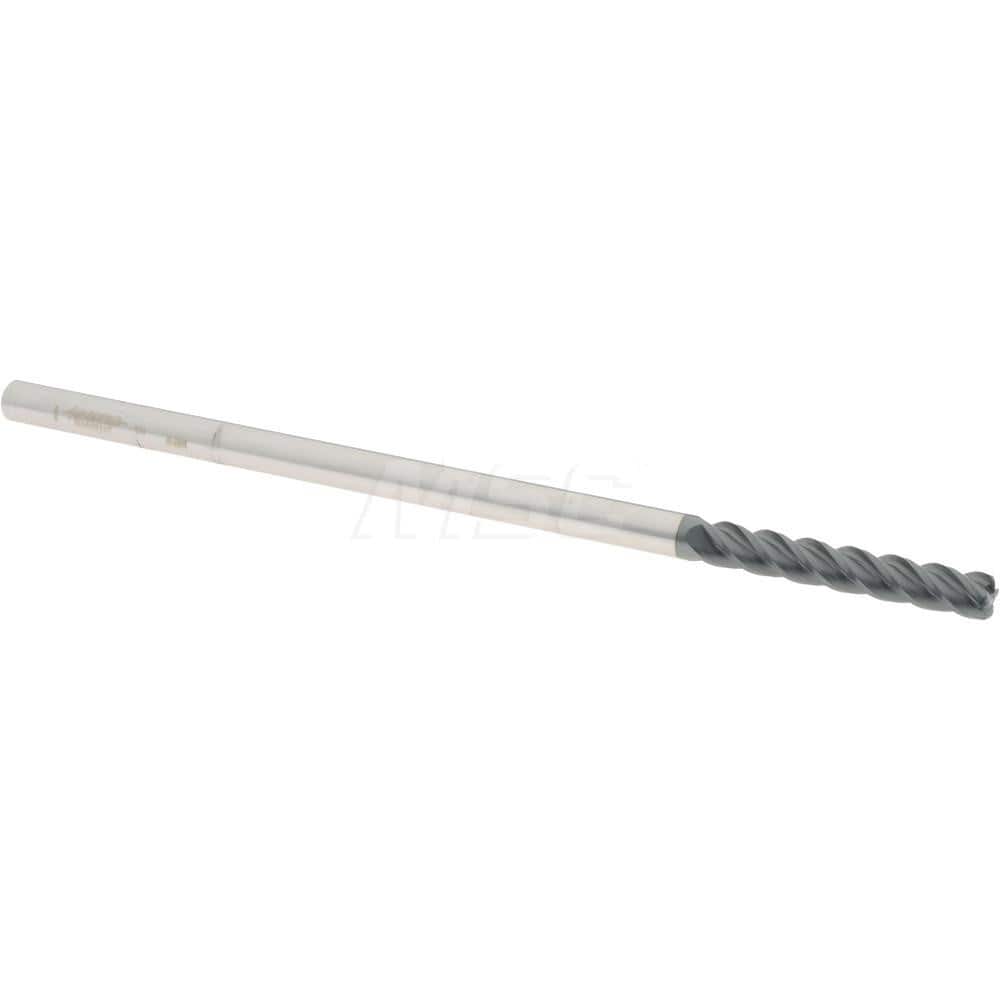

Accupro - 1/4" Diam 4 Flute Solid Carbide 0.045" Corner Radius End Mill
Item #: 93029247
Brand: Accupro
Model #: 12183657
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0450 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 6 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 40.00 |
| Variable Index | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Length Type | Extra Long |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.0025 |
| Corner Radius Tolerance (Decimal Inch) | +/-0.0015 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Extended Reach | No |
