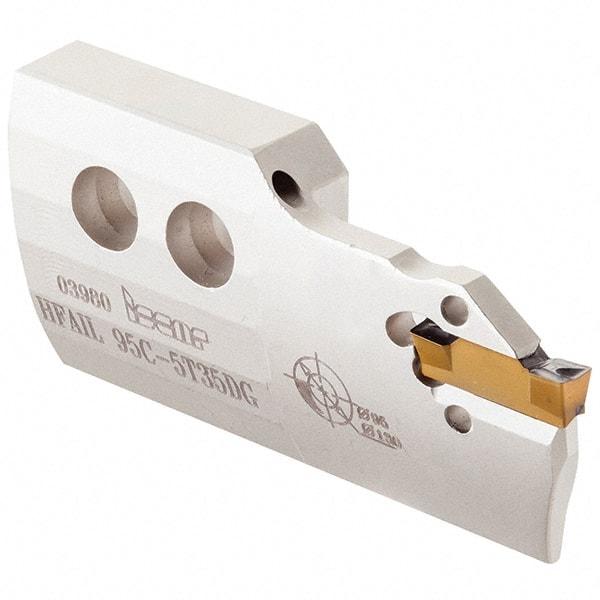

Iscar - 5" Groove Width, 38mm Max Depth of Cut, Right Hand Cut, HFAI Indexable Grooving Blade - DGN-W, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, GRIP, GRIP (Full Radius), HFPR/L, HFPR/L (Full Radius) Insert Style, Series Heliface
Item #: 92916170
Brand: Iscar
Model #: 2500731
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Blade Style | HFAI |
| Series | Heliface |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 76.50 |
| Overall Length (Decimal Inch) | 3.0118 |
| Insert Style | DGN-W; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; GRIP; GRIP (Full Radius); HFPR/L; HFPR/L (Full Radius) |
| Complete Insert Compatibility | DGN 5003C; GRIP 5005Y; GRIP 5008Y; GRIP 5025Y; HFPR 5004; HFPR 5025 |
